DID chain kit for Yamaha XS 400 80-82 530 NZ chain kit

DID chain set for Yamaha XS 400 80-82 530 NZ chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

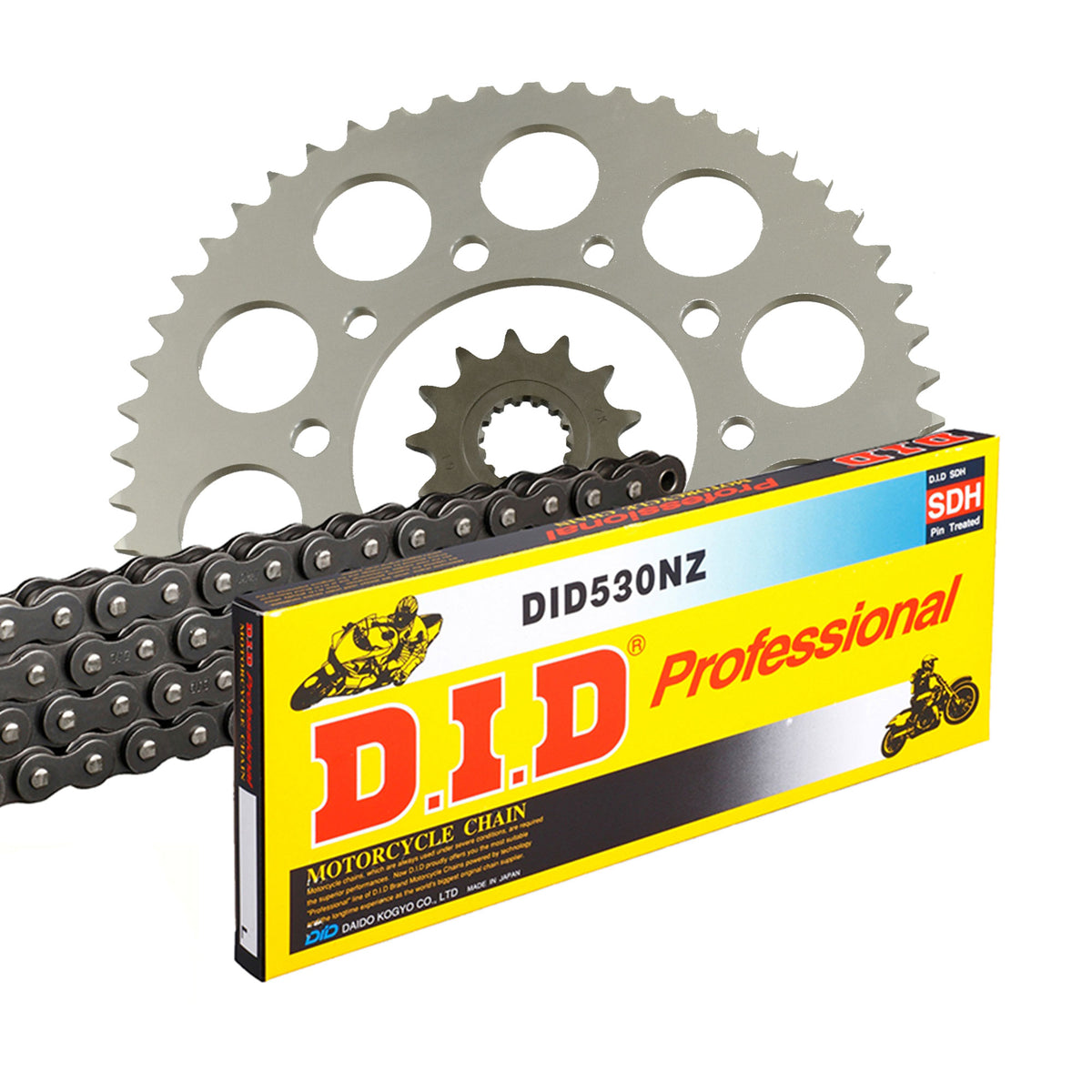

Components of the chain kit Yamaha XS 400 2A2 1980-1982

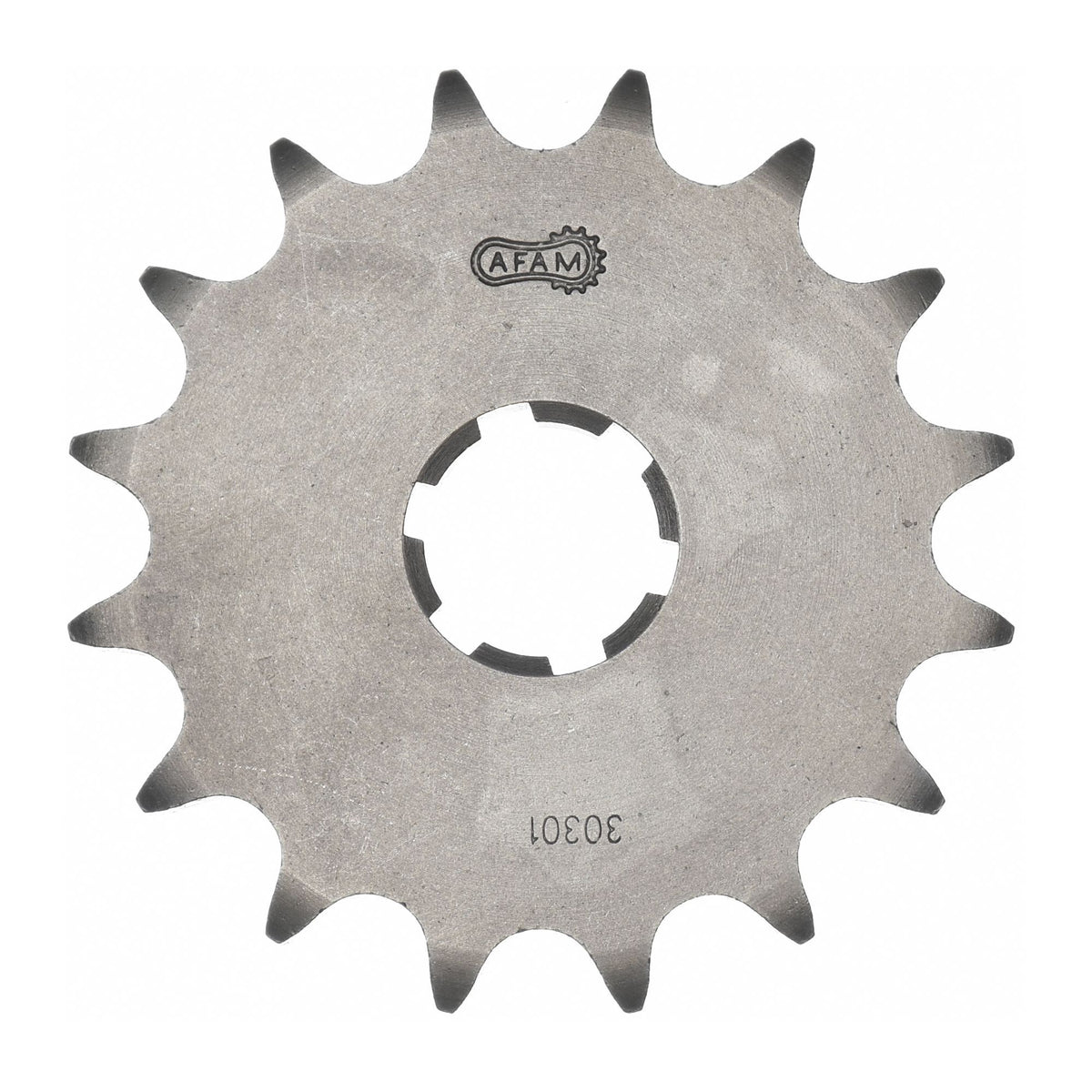

• Sprocket: AFAM sprocket #530 16 teeth - a30301.16

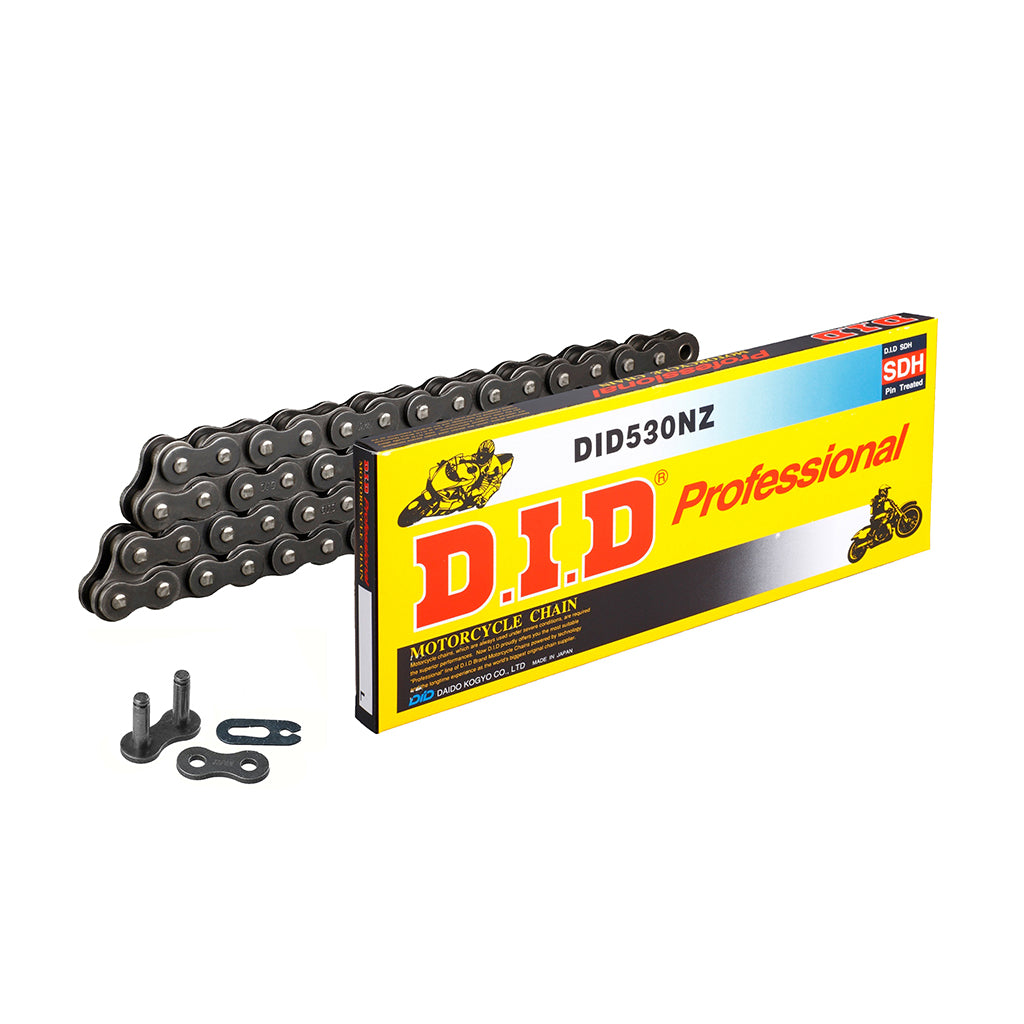

• Chain: DID chain 530 NZ 104 with clip link - d6253001104

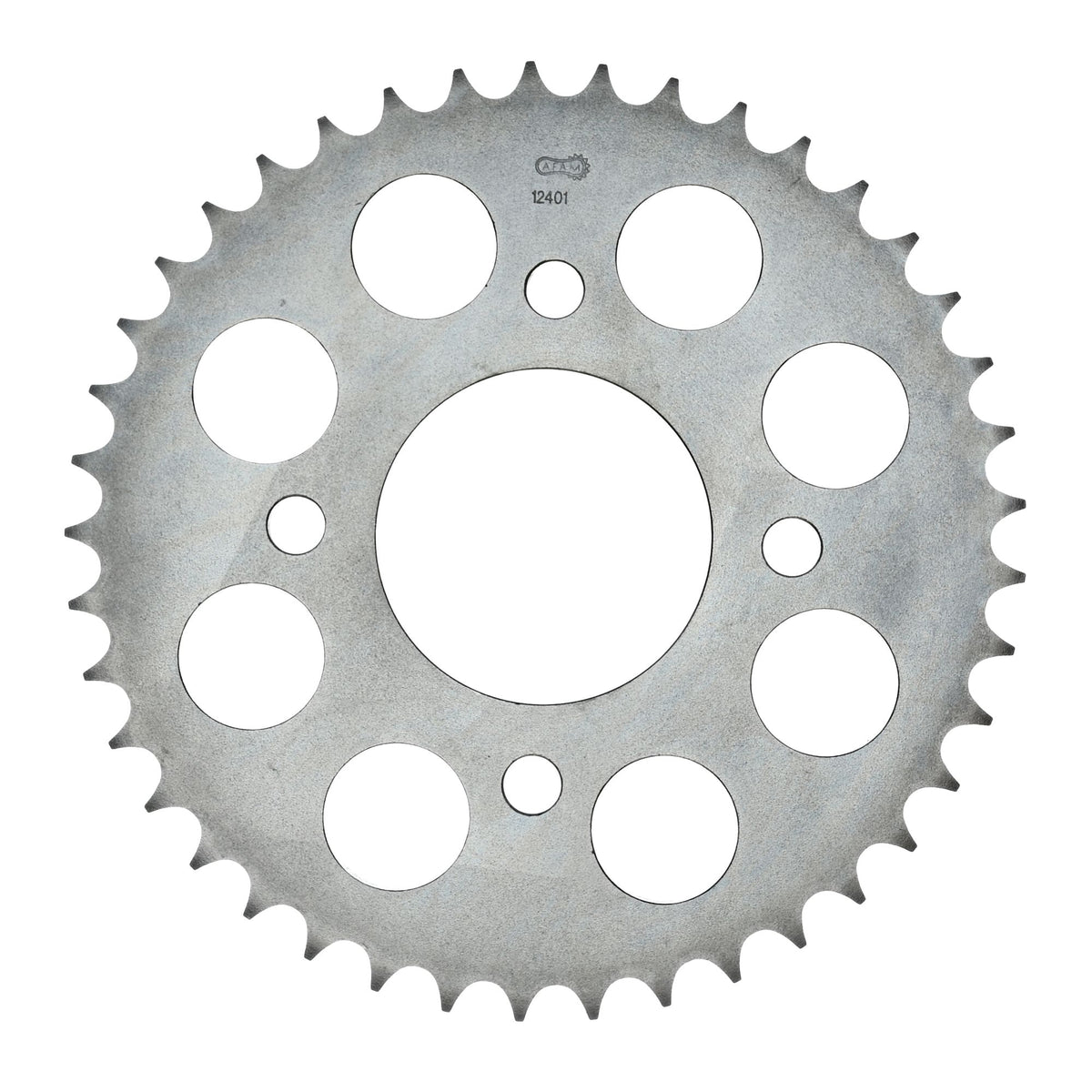

• Rear sprocket: AFAM rear sprocket STEEL #530 39 teeth - a12401.39
• Gear ratio sprocket-chain-rear sprocket: 16-104-39

DID 530 NZ

Extra reinforced chain, especially for vintage bikes and Harley's
Without sealing rings
Color: Black

Technical data:
Pitch: 530
Pin length: 22.55 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.4 mm
Wear index: 410
Tensile strength: 38.30 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-53936

Suitable for

Yamaha 251 - 500 cc XS 400 2A2 1980
Yamaha 251 - 500 cc XS 400 2A2 1981
Yamaha 251 - 500 cc XS 400 2A2 1982
