DID chain kit for Yamaha XS 400 SE Special 81-83 530 NZ chain kit

DID chain kit for Yamaha XS 400 SE Special 81-83 530 NZ chain set

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

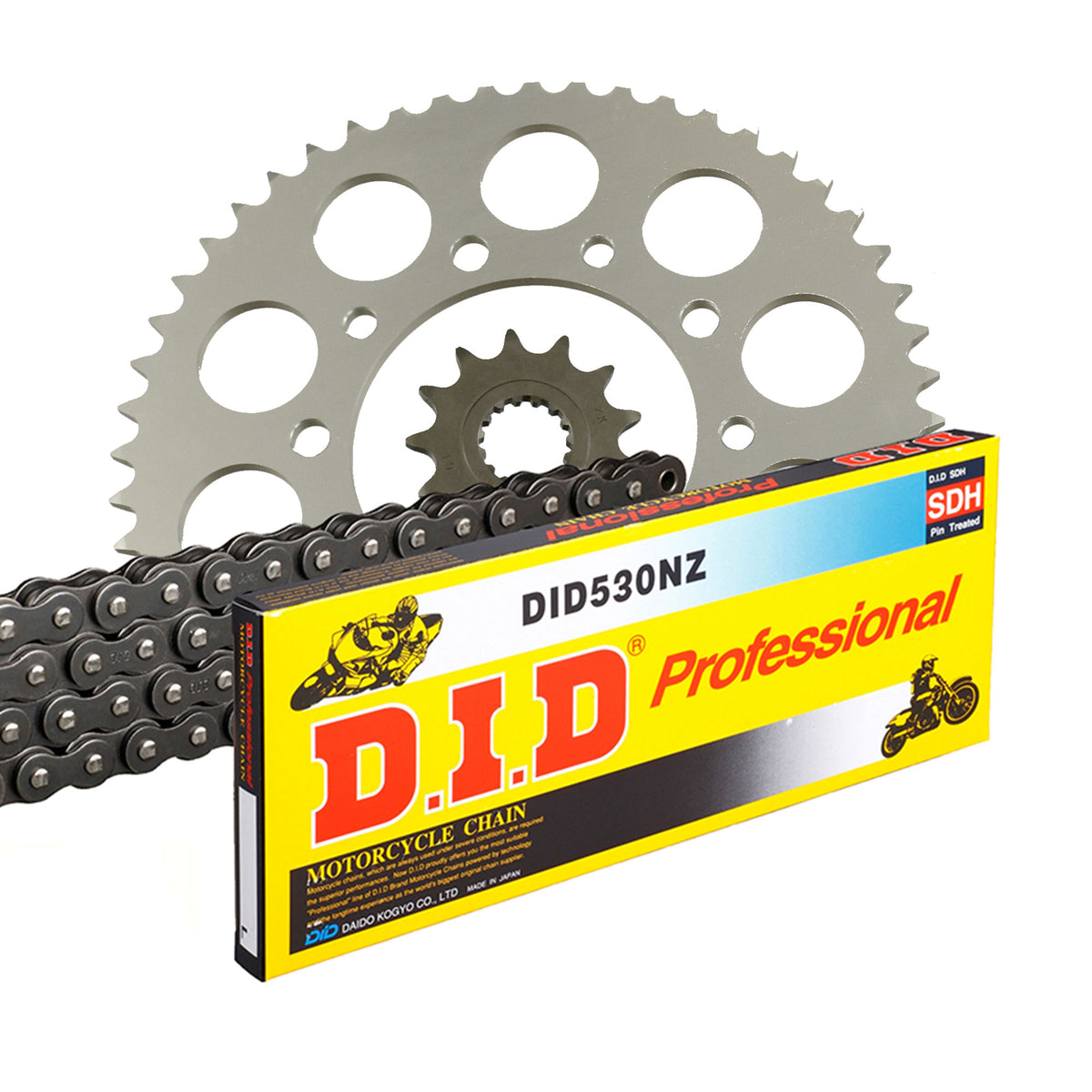

Components of the chain kit Yamaha XS 400 SE Special 4G5 1981-1983

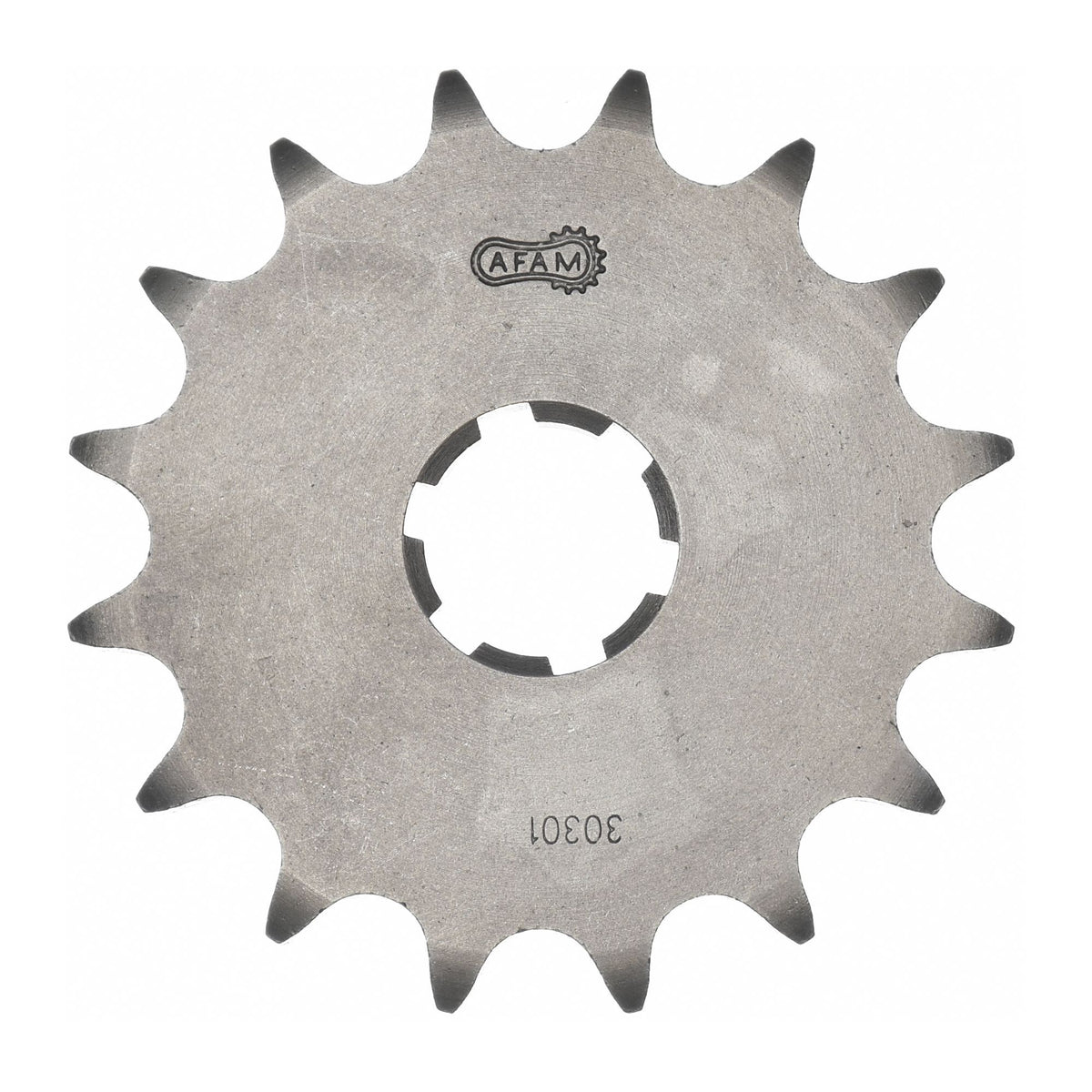

• Front sprocket: AFAM front sprocket #530 16 teeth - a30301.16

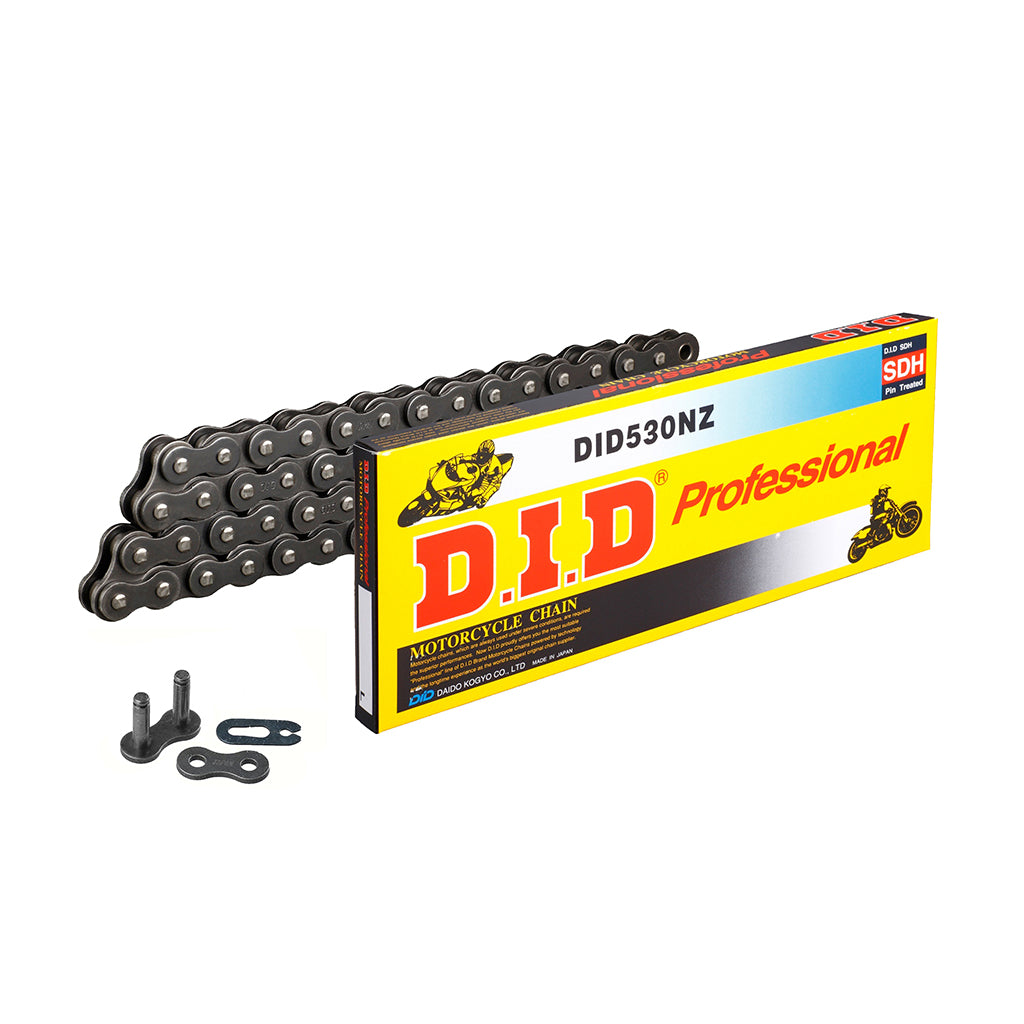

• Chain: DID chain 530 NZ 106 with clip-type master link - d6253001106

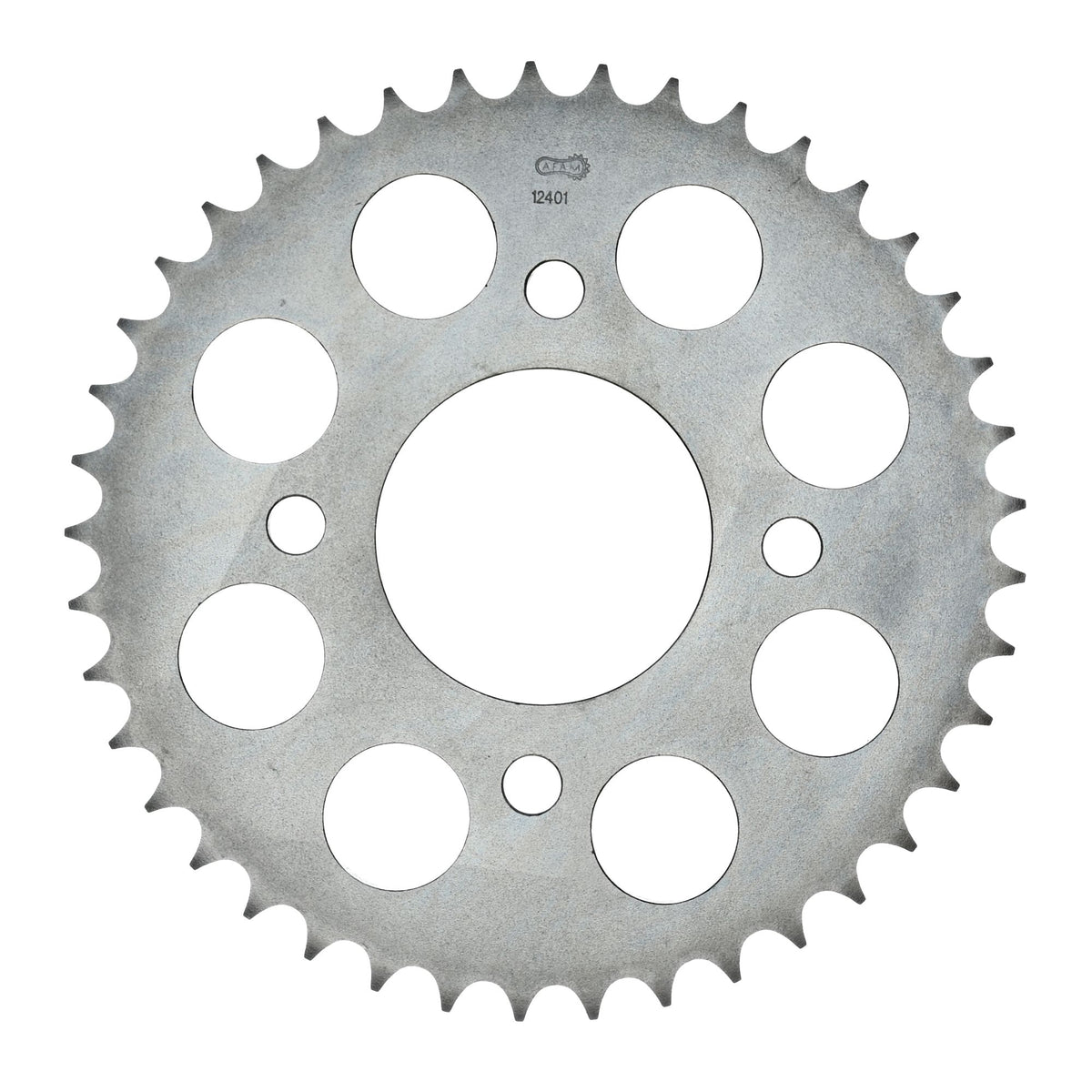

• Rear sprocket: AFAM rear sprocket STEEL #530 36 teeth - a12401.36
• Gear ratio front sprocket-chain-rear sprocket: 16-106-36

DID 530 NZ

Extra reinforced chain, specifically for vintage bikes and Harleys
Without O-rings
Color: Black

Technical specifications:
Pitch: 530
Pin length: 22.55 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.4 mm
Wear resistance index: 410
Tensile strength: 38.30 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, which were not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-34514

Fits for

Yamaha 251 - 500 cc XS 400 SE Special 4G5 1981
Yamaha 251 - 500 cc XS 400 SE Special 4G5 1982
Yamaha 251 - 500 cc XS 400 SE Special 4G5 1983
