DID chain kit for Yamaha XSR 900 ABS 16-20 525 ZVMX chain kit

DID chain kit for Yamaha XSR 900 ABS 16-20 525 ZVMX chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

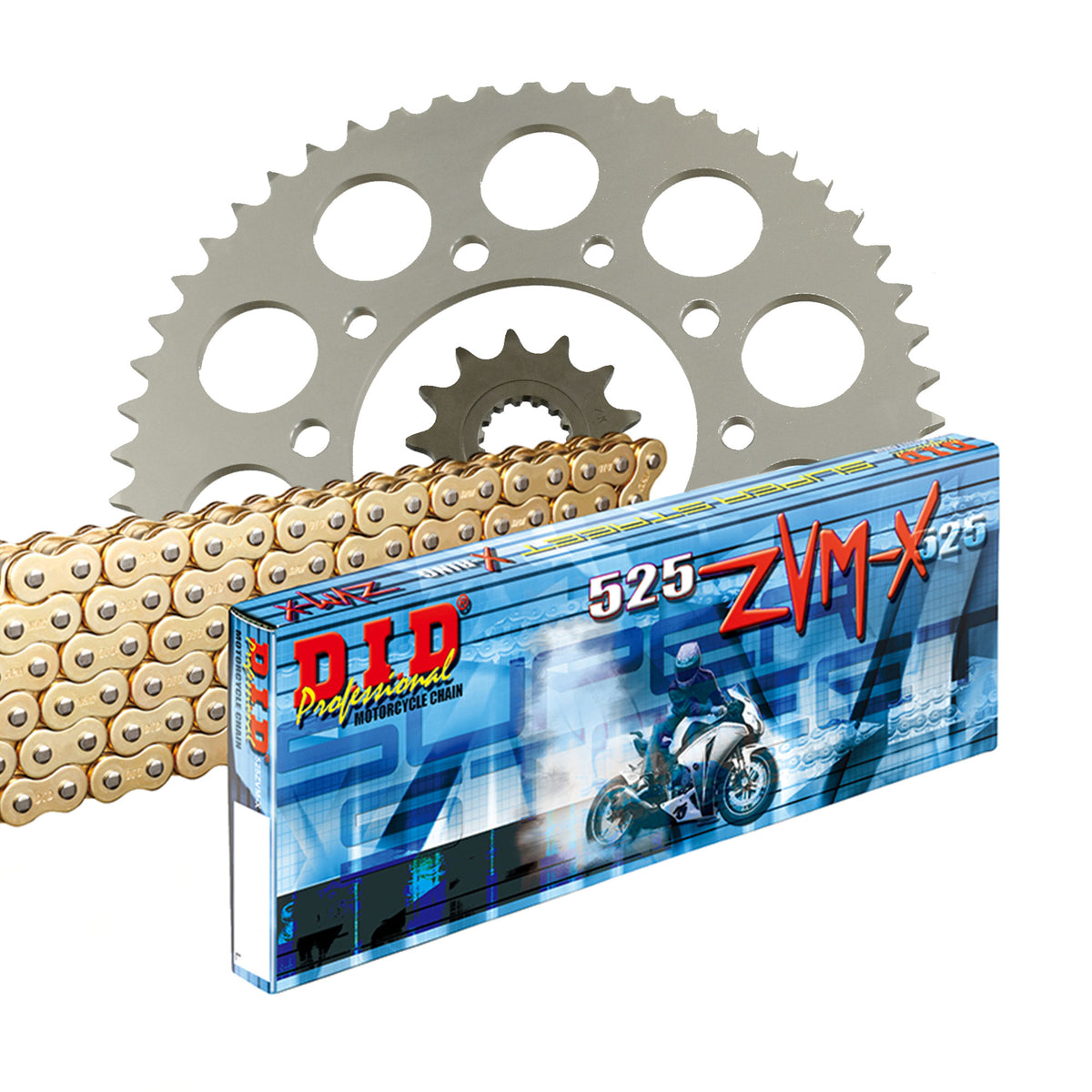

Components of the chain kit Yamaha XSR 900 ABS RN43 2016-2020

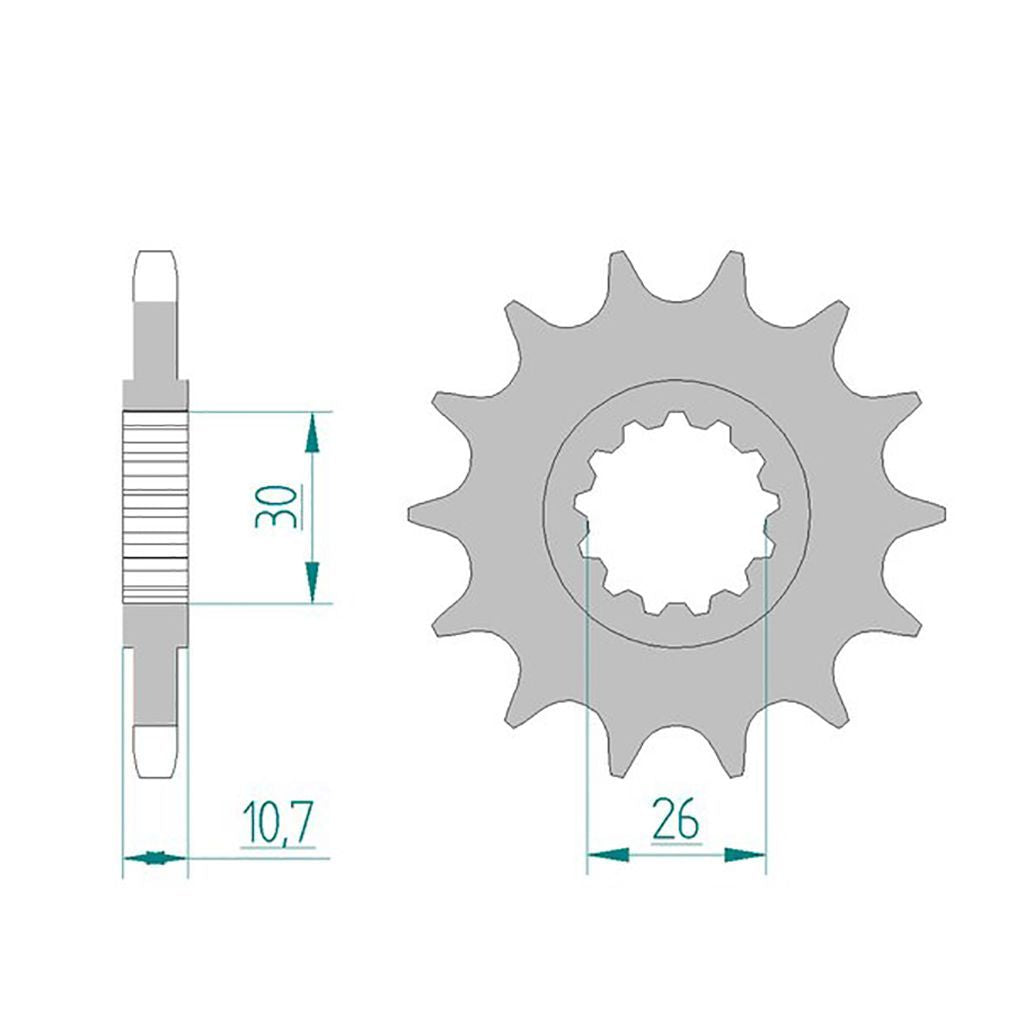

• Front sprocket: AFAM front sprocket #525 16 teeth - a21607.16

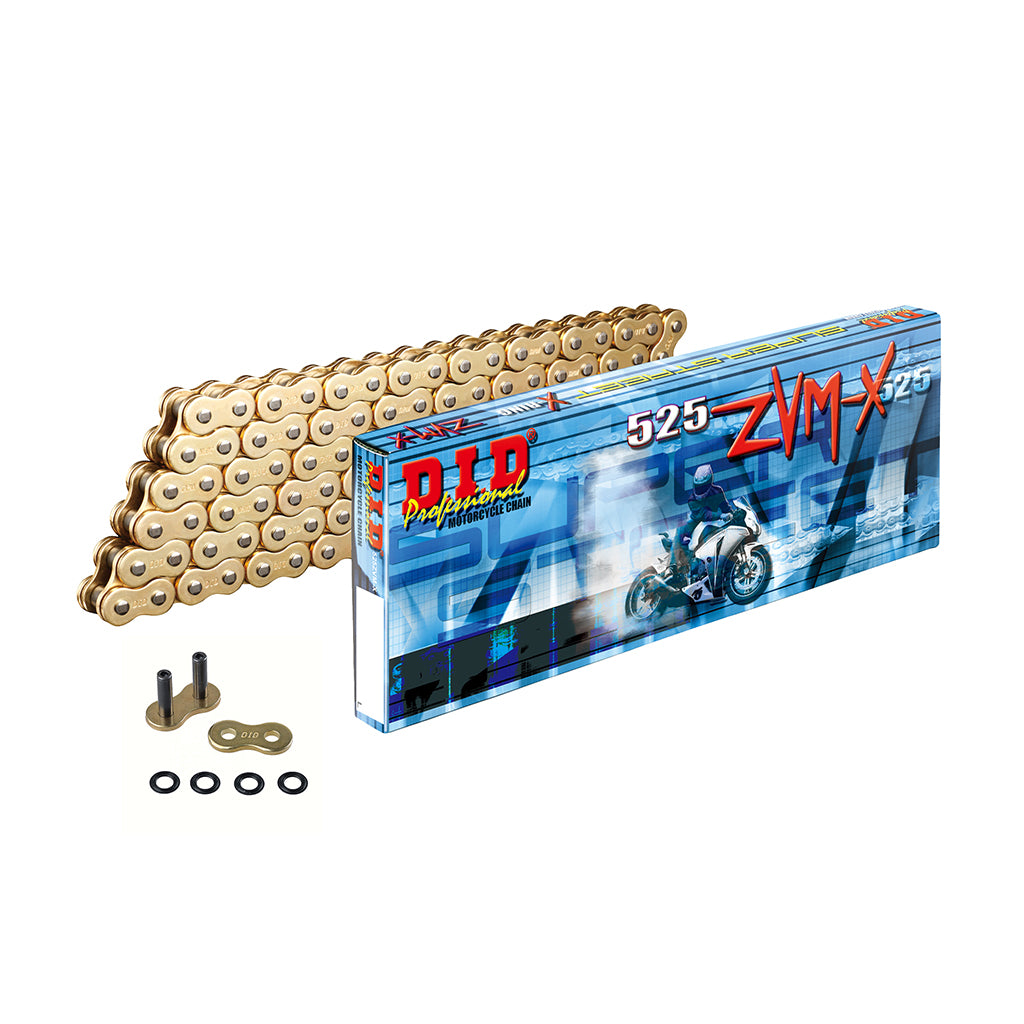

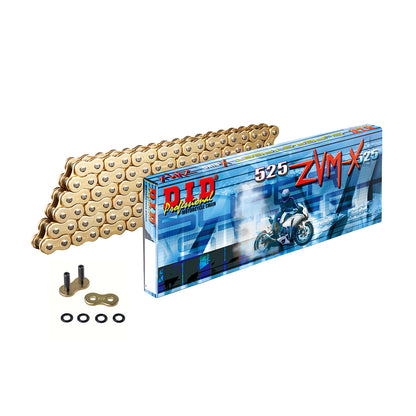

• Chain: DID chain 525 ZVM-X G&G 110 w/ rivet link - d6252529110

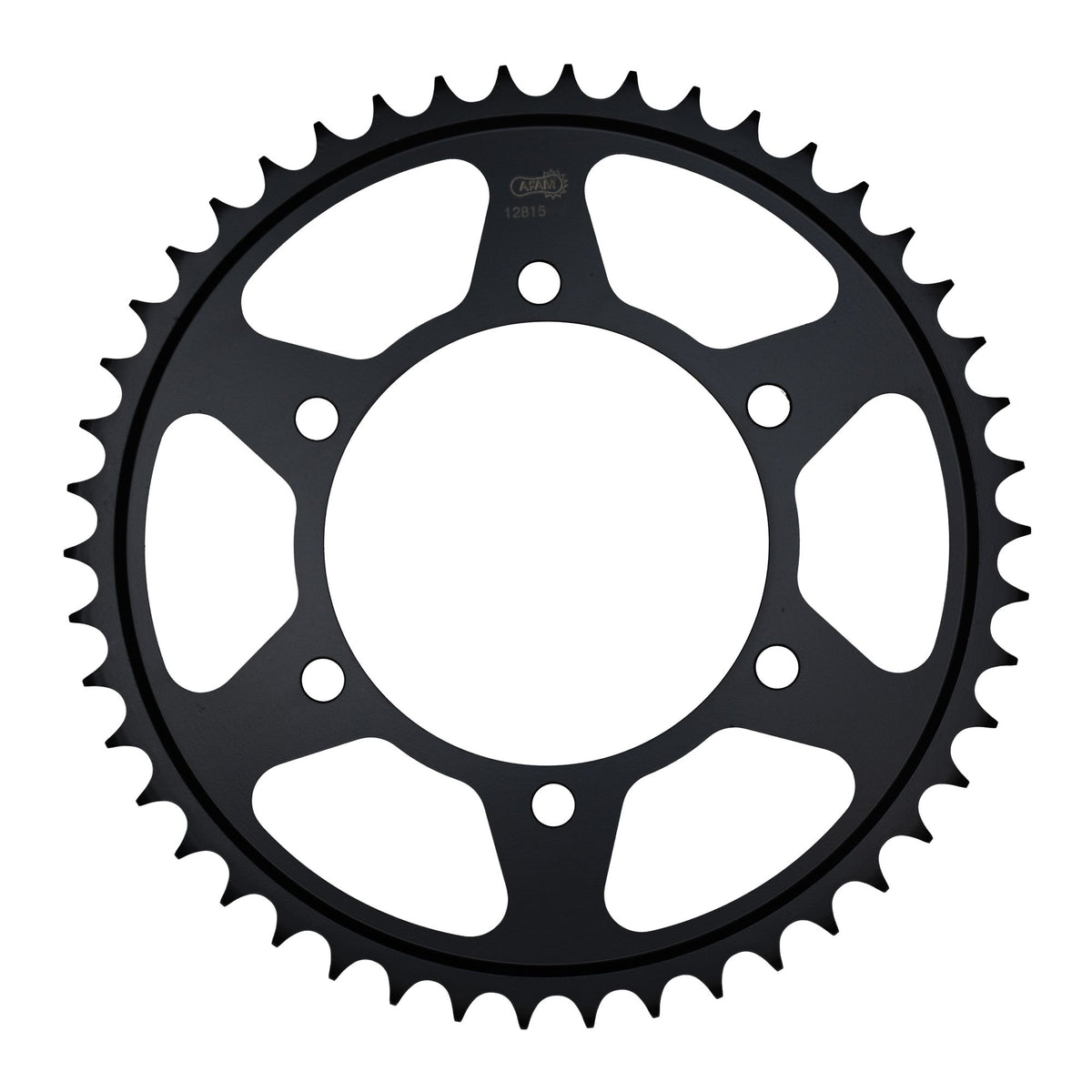

• Rear sprocket: AFAM rear sprocket STEEL #525 45 teeth - a12815.45
• Gear ratio front sprocket-chain-rear sprocket: 16-110-45

DID 525 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical data:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 46.30 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Article number	KKF-35432

Fits

Yamaha 751 - 1000 cc XSR 900 ABS RN43 2016
Yamaha 751 - 1000 cc XSR 900 ABS RN43 2017
Yamaha 751 - 1000 cc XSR 900 ABS RN43 2018
Yamaha 751 - 1000 cc XSR 900 ABS RN43 2019
Yamaha 751 - 1000 cc XSR 900 ABS RN43 2020
