DID chain set for Yamaha XT 500 76-89 530 NZ chain kit

DID chain kit for Yamaha XT 500 76-89 530 NZ chain kit

Chain kit or chain set for assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

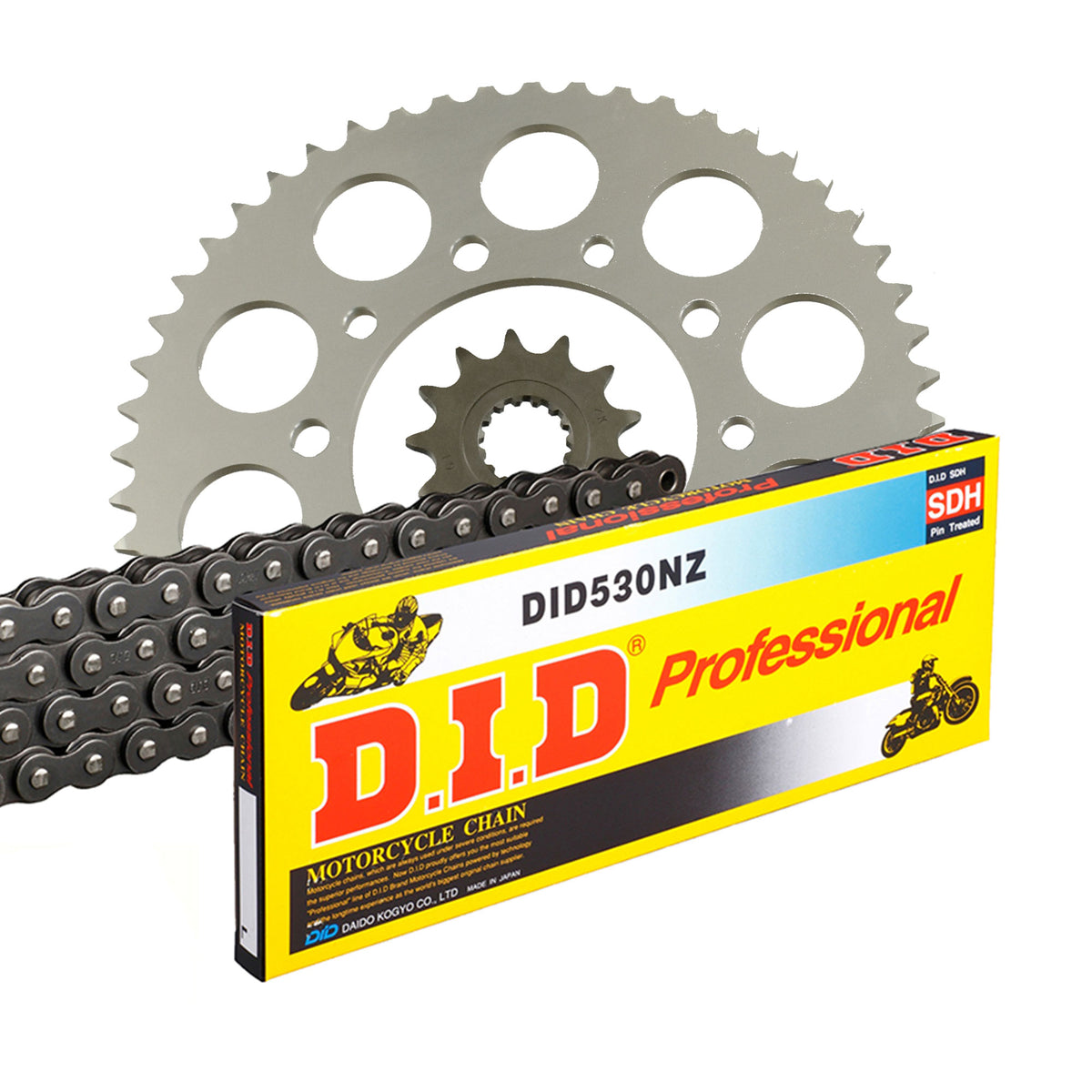

Components of the chain kit Yamaha XT 500 1U6 1976-1989 conversion #530

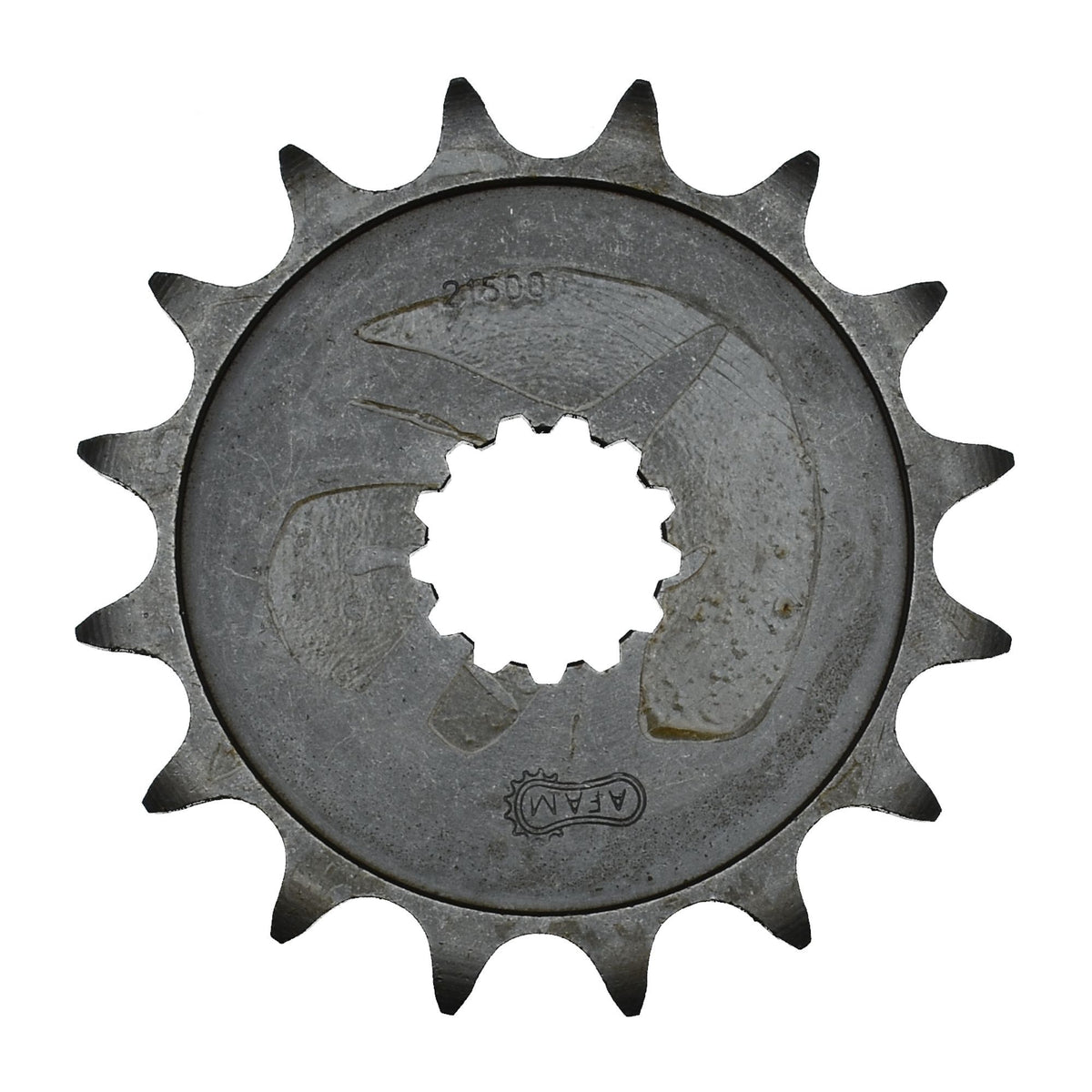

• Sprocket: AFAM sprocket #530 16 teeth - a21500.16
• Chain: DID chain 530 NZ 100 with clip connecting link - d6253001100

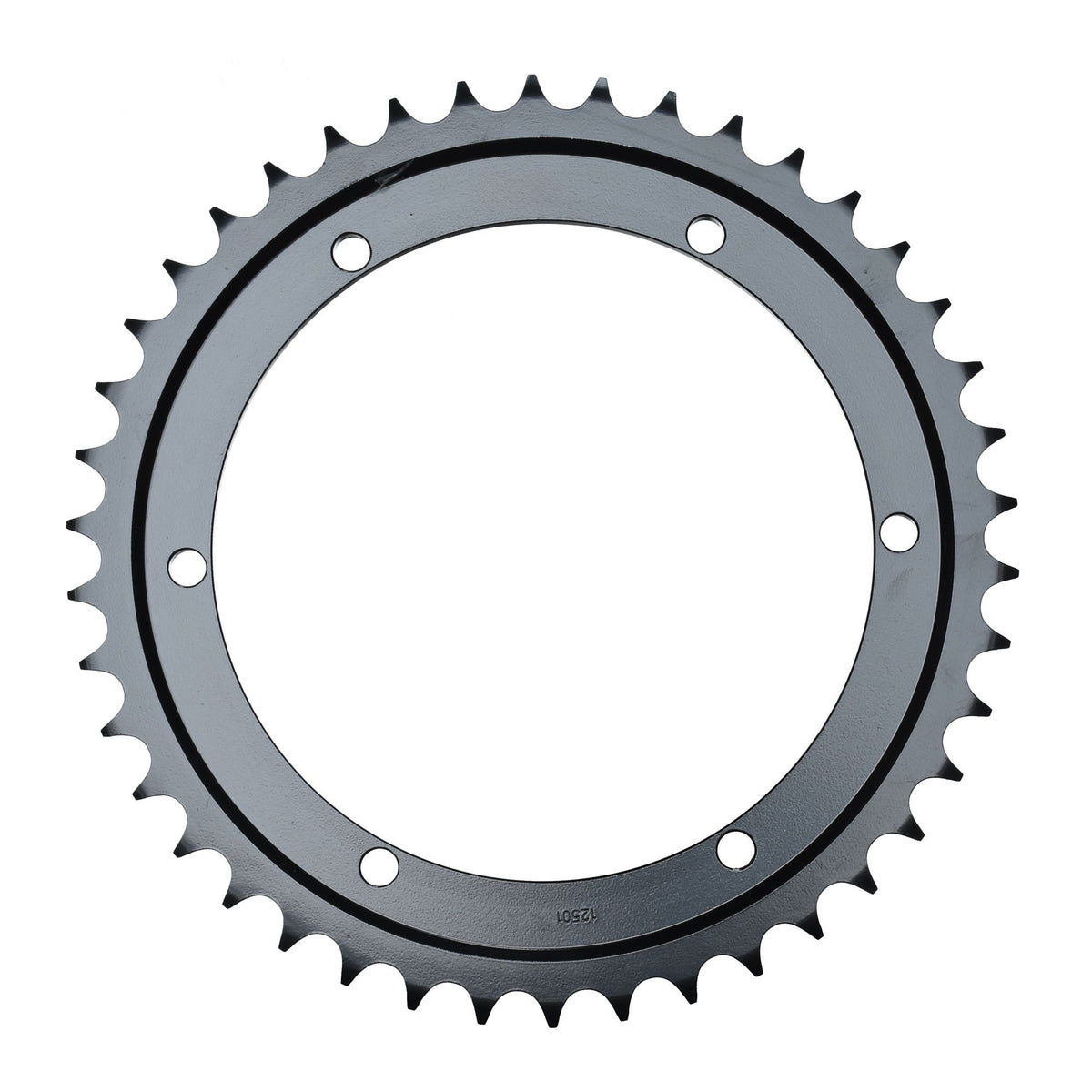

• Chain wheel: AFAM chain wheel STEEL #530 42 teeth - a12501.42
• Gear ratio sprocket-chain-chain wheel: 16-100-42 conversion #530

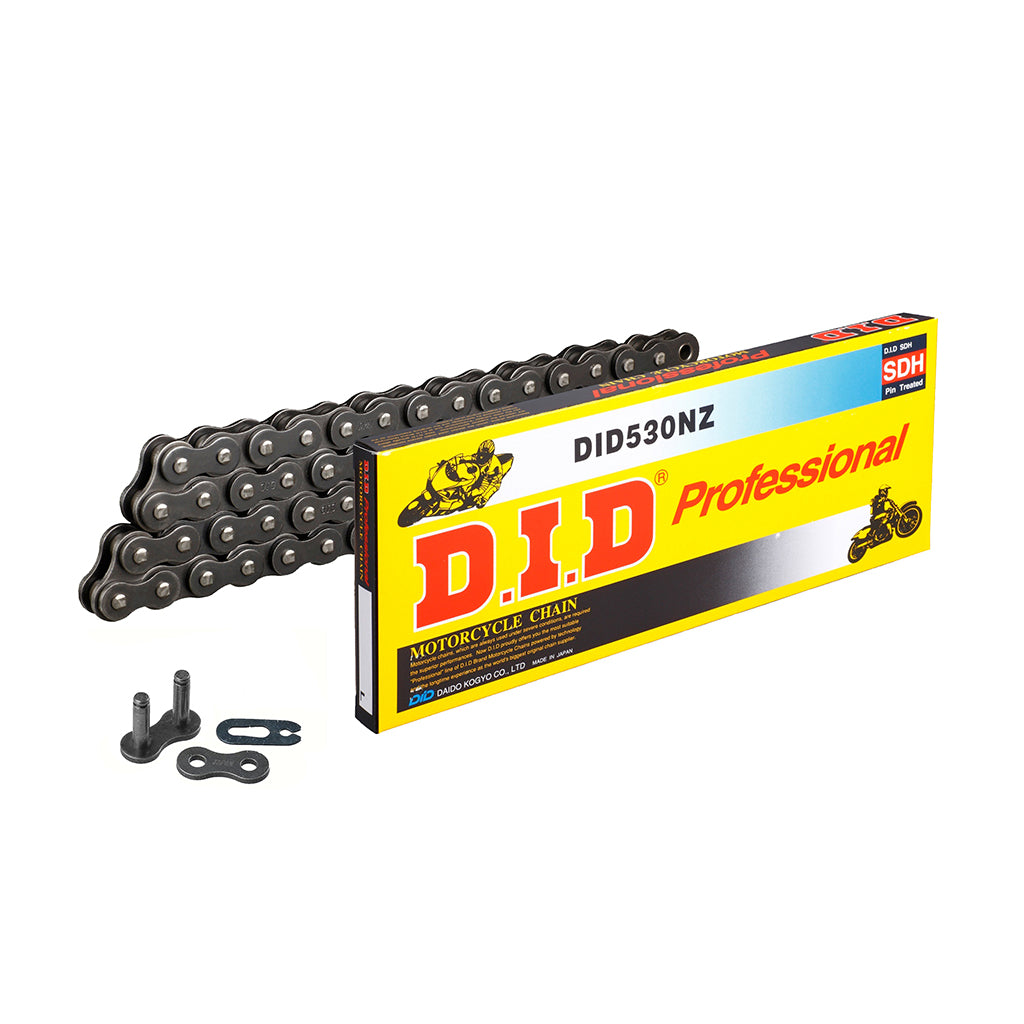

DID 530 NZ

Extra reinforced chain, especially for classic bikes and Harley's
Without seal rings
Color: Black

Technical data:
Pitch: 530
Pin length: 22.55 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.4 mm
Wear resistance index: 410
Tensile strength: 38.30 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-43287

Suitable for

Yamaha 251 - 500 ccm XT 500 1U6 1976
Yamaha 251 - 500 ccm XT 500 1U6 1977
Yamaha 251 - 500 ccm XT 500 1U6 1978
Yamaha 251 - 500 ccm XT 500 1U6 1979
Yamaha 251 - 500 ccm XT 500 1U6 1980
Yamaha 251 - 500 ccm XT 500 1U6 1981
Yamaha 251 - 500 ccm XT 500 1U6 1982
Yamaha 251 - 500 ccm XT 500 1U6 1983
Yamaha 251 - 500 ccm XT 500 1U6 1984
Yamaha 251 - 500 ccm XT 500 1U6 1985
Yamaha 251 - 500 ccm XT 500 1U6 1986
Yamaha 251 - 500 ccm XT 500 1U6 1987
Yamaha 251 - 500 ccm XT 500 1U6 1988
Yamaha 251 - 500 ccm XT 500 1U6 1989
