DID chain kit for Yamaha XT 600 N 87-90 520 ZVMX chain kit

DID chain kit for Yamaha XT 600 N 87-90 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Yamaha XT 600 N 2NF 1987-1990

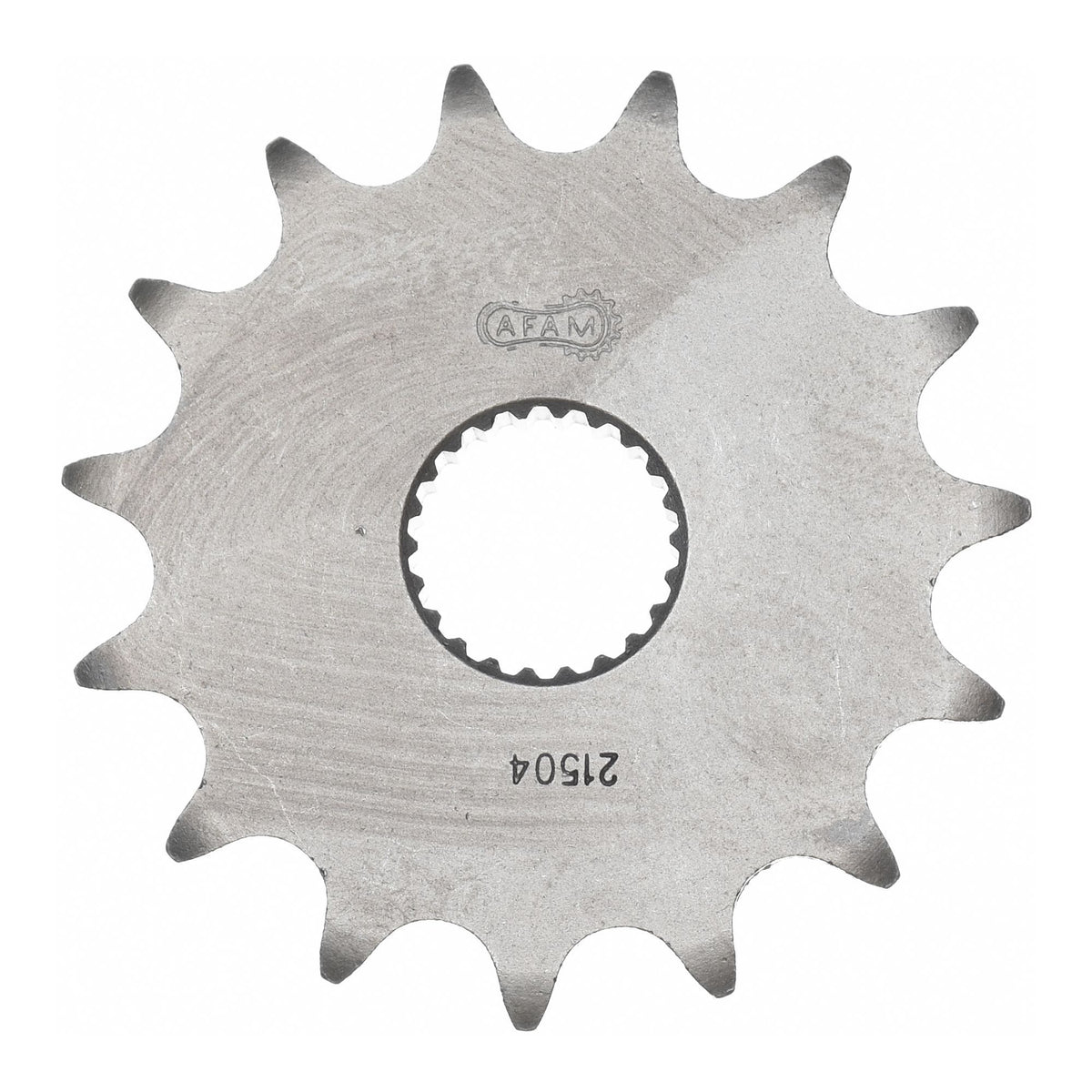

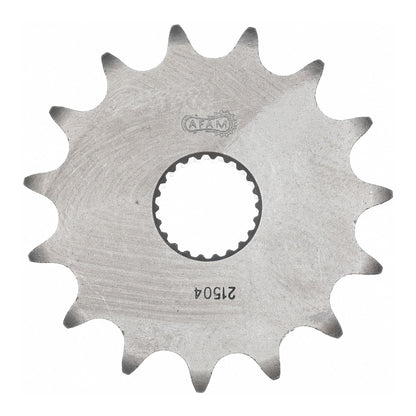

• Sprocket: AFAM sprocket #520 15 teeth - a21504.15
• Chain: DID chain 520 ZVM-X G&G 102 with rivet link - d6252029102

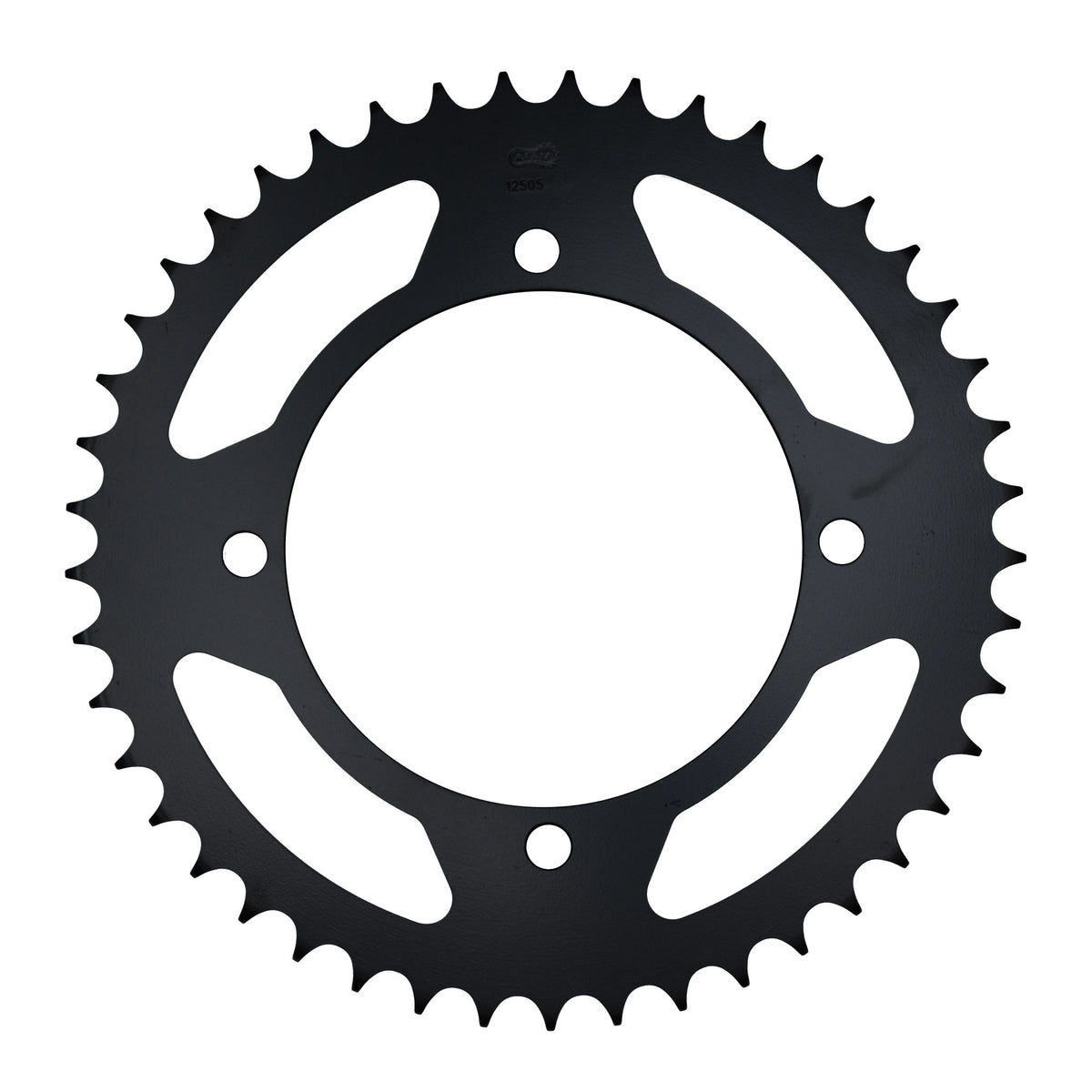

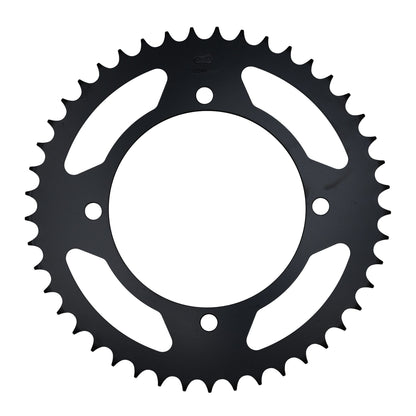

• Rear sprocket: AFAM rear sprocket STEEL #520 40 teeth - a12505.40
• Gear ratio sprocket-chain-rear sprocket: 15-102-40

DID 520 ZVM-X

Extra reinforced chain, versatile application area
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Mileage index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-34326

Suitable for

Yamaha 501 - 750 cc XT 600 N 2NF 1987
Yamaha 501 - 750 cc XT 600 N 2NF 1988
Yamaha 501 - 750 cc XT 600 N 2NF 1989
Yamaha 501 - 750 cc XT 600 N 2NF 1990
