DID chain kit for Yamaha XT 660 X Super Motard 04-06 520 ZVMX chain kit

DID chain kit for Yamaha XT 660 X Super Motard 04-06 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha XT 660 X Super Motard DM014 2004-2006

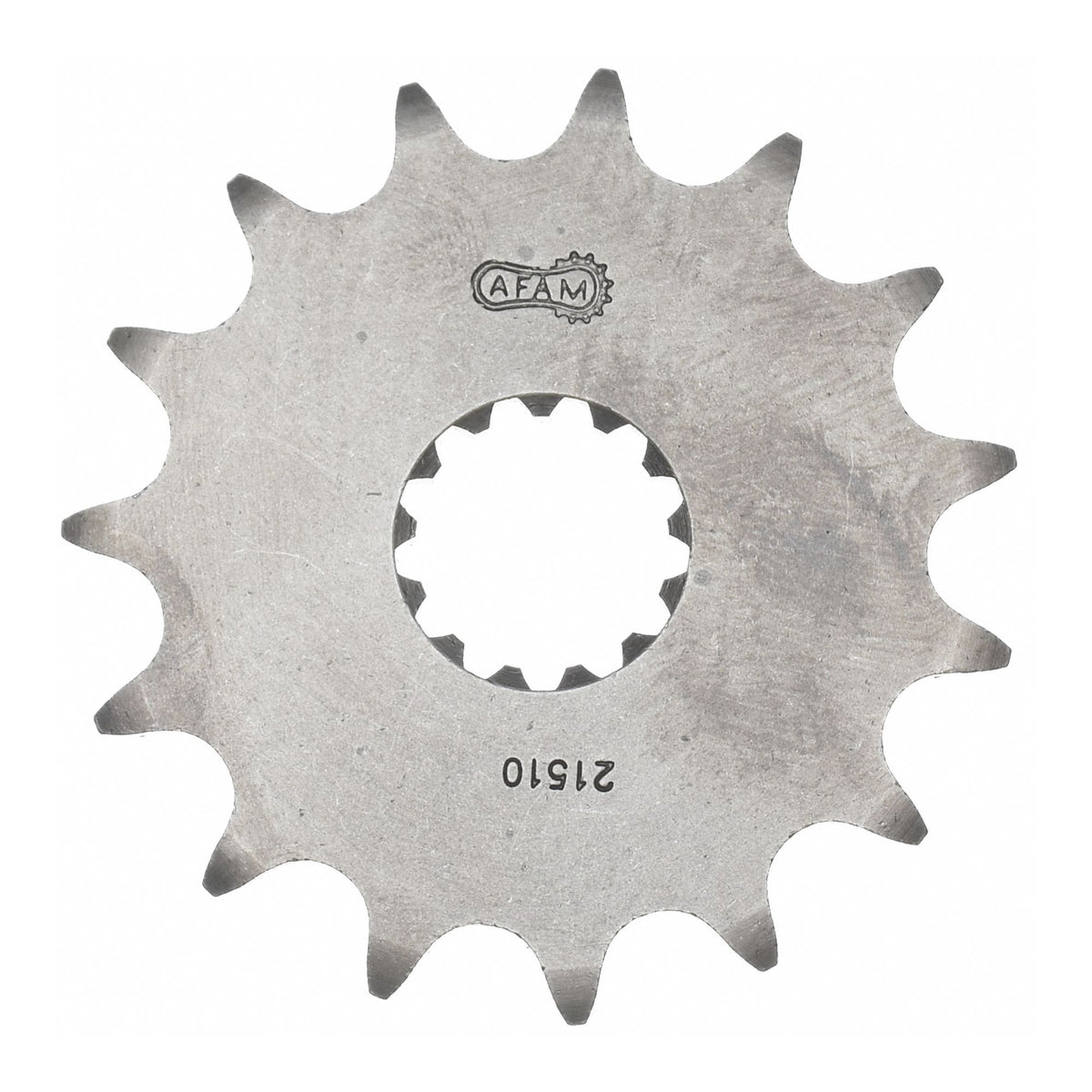

• Front sprocket: AFAM front sprocket #520 15 teeth - a21510.15
• Chain: DID chain 520 ZVM-X G&G 110 w. rivet link - d6252029110

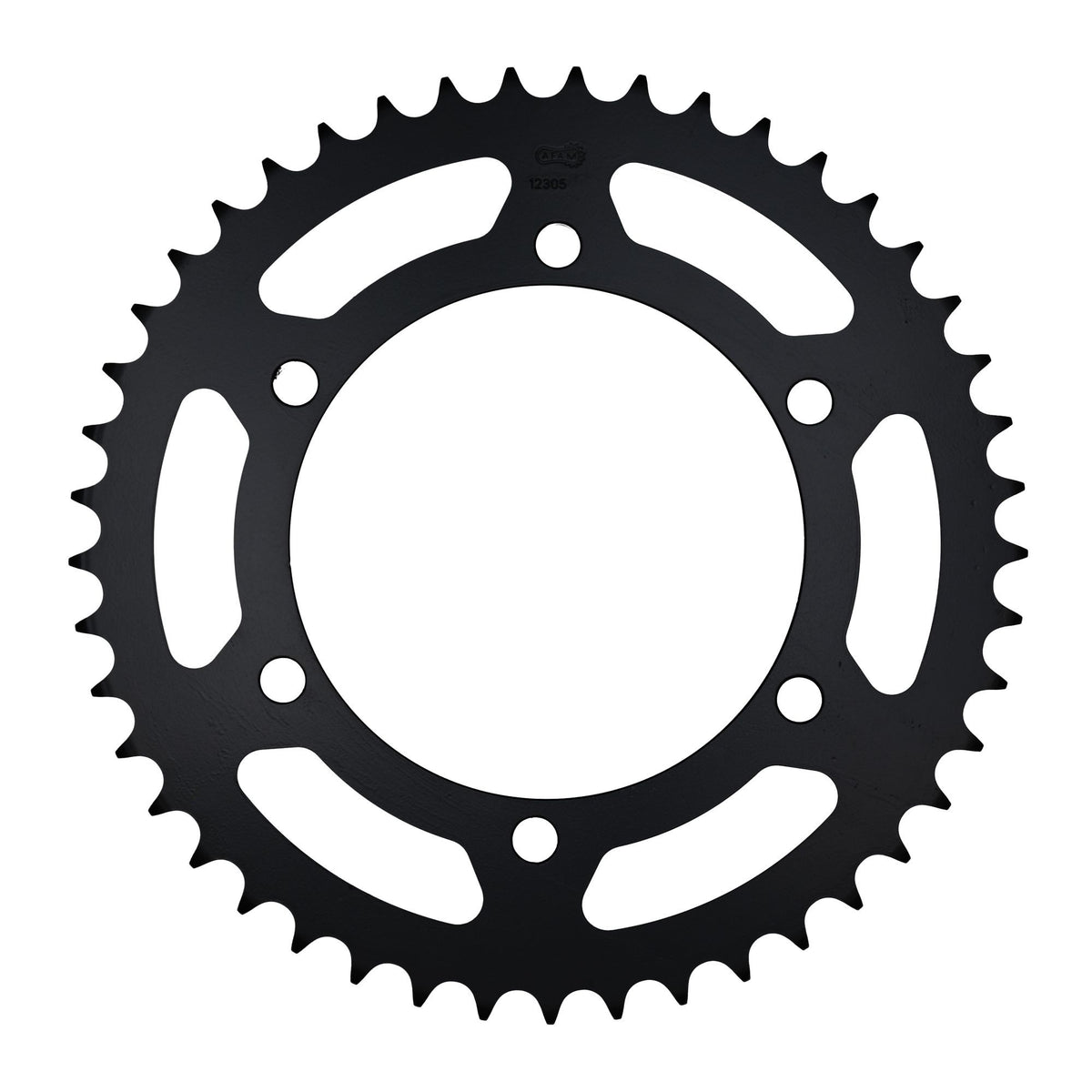

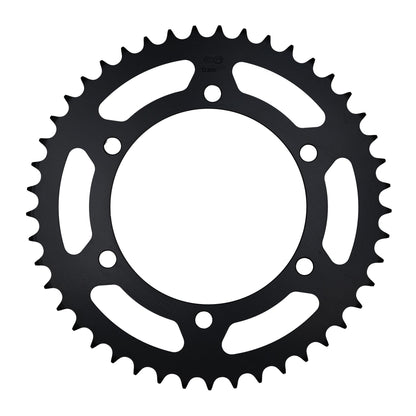

• Rear sprocket: AFAM rear sprocket STEEL #520 45 teeth - a12305.45
• Gear ratio front sprocket-chain-rear sprocket: 15-110-45

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-44025

Suitable for

Yamaha 501 - 750 cc XT 660 X Super Motard DM014 2004
Yamaha 501 - 750 cc XT 660 X Super Motard DM014 2005
Yamaha 501 - 750 cc XT 660 X Super Motard DM014 2006
