DID chain kit for Yamaha XT 660 Z Tenere ABS 13-16 520 ZVMX chain kit

DID chain kit for Yamaha XT 660 Z Tenere ABS 13-16 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the chain kit Yamaha XT 660 Z Tenere ABS DM04 2013-2016

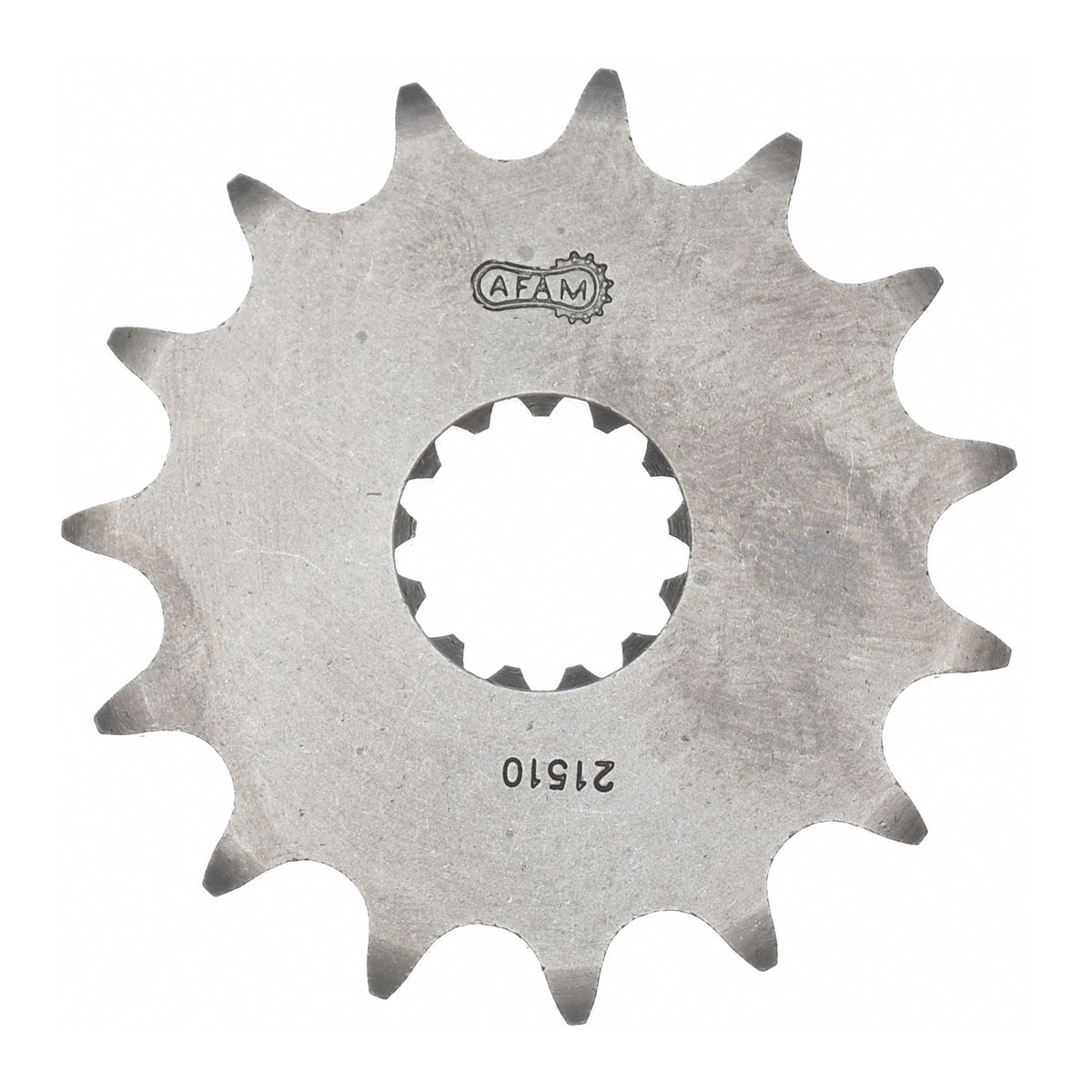

• Sprocket: AFAM sprocket #520 15 teeth - a21510.15
• Chain: DID chain 520 ZVM-X G&G 110 w. rivet link - d6252029110

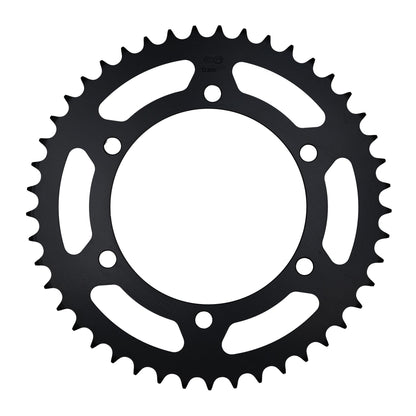

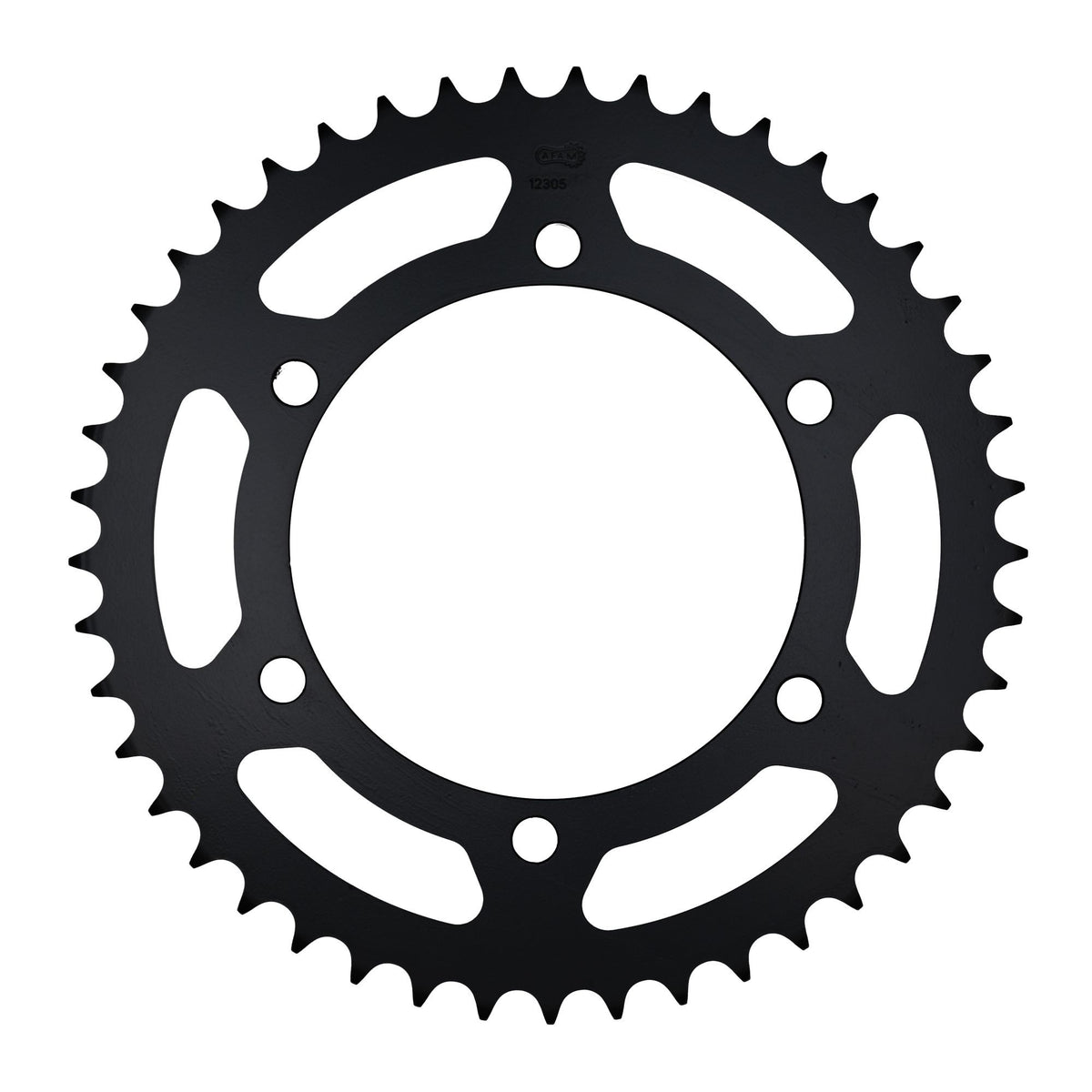

• Rear sprocket: AFAM rear sprocket STEEL #520 45 teeth - a12305.45
• Gear ratio sprocket-chain-rear sprocket: 15-110-45

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-Ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Part number	KKF-44201

Suitable for

Yamaha 501 - 750 cc XT 660 Z Tenere ABS DM04 2013
Yamaha 501 - 750 cc XT 660 Z Tenere ABS DM04 2014
Yamaha 501 - 750 cc XT 660 Z Tenere ABS DM04 2015
Yamaha 501 - 750 cc XT 660 Z Tenere ABS DM04 2016
