DID chain kit for Yamaha XTZ 660 Tenere 91-95 520 VX3 chain kit

DID Chain Kit for Yamaha XTZ 660 Tenere 91-95 520 VX3 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha XTZ 660 Tenere 3YF 1991-1995

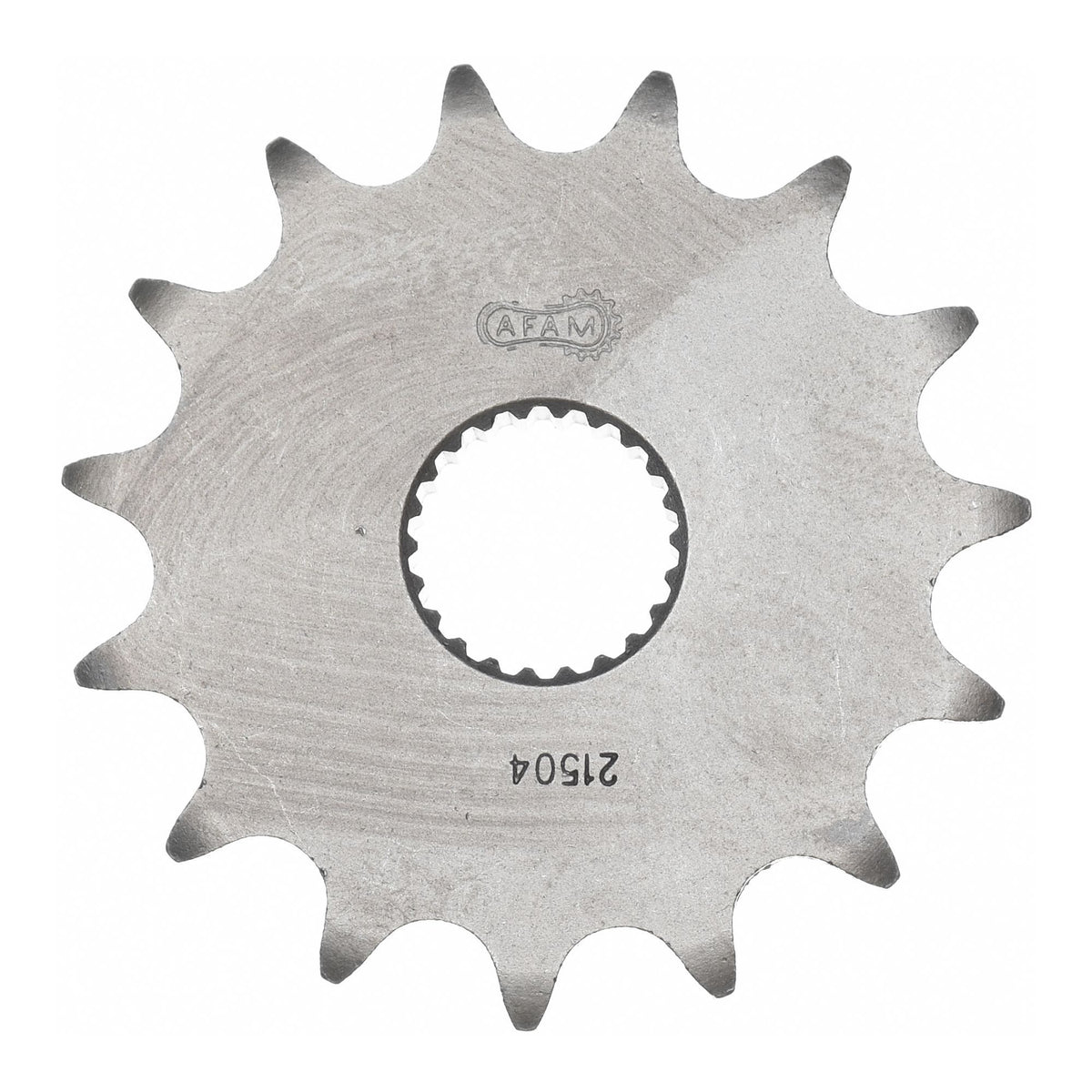

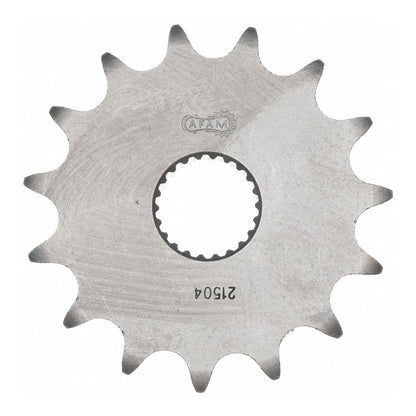

• Front sprocket: AFAM sprocket #520 15 teeth - a21504.15
• Chain: DID chain 520 VX3 G&B 110 with rivet link - d520vx3-110

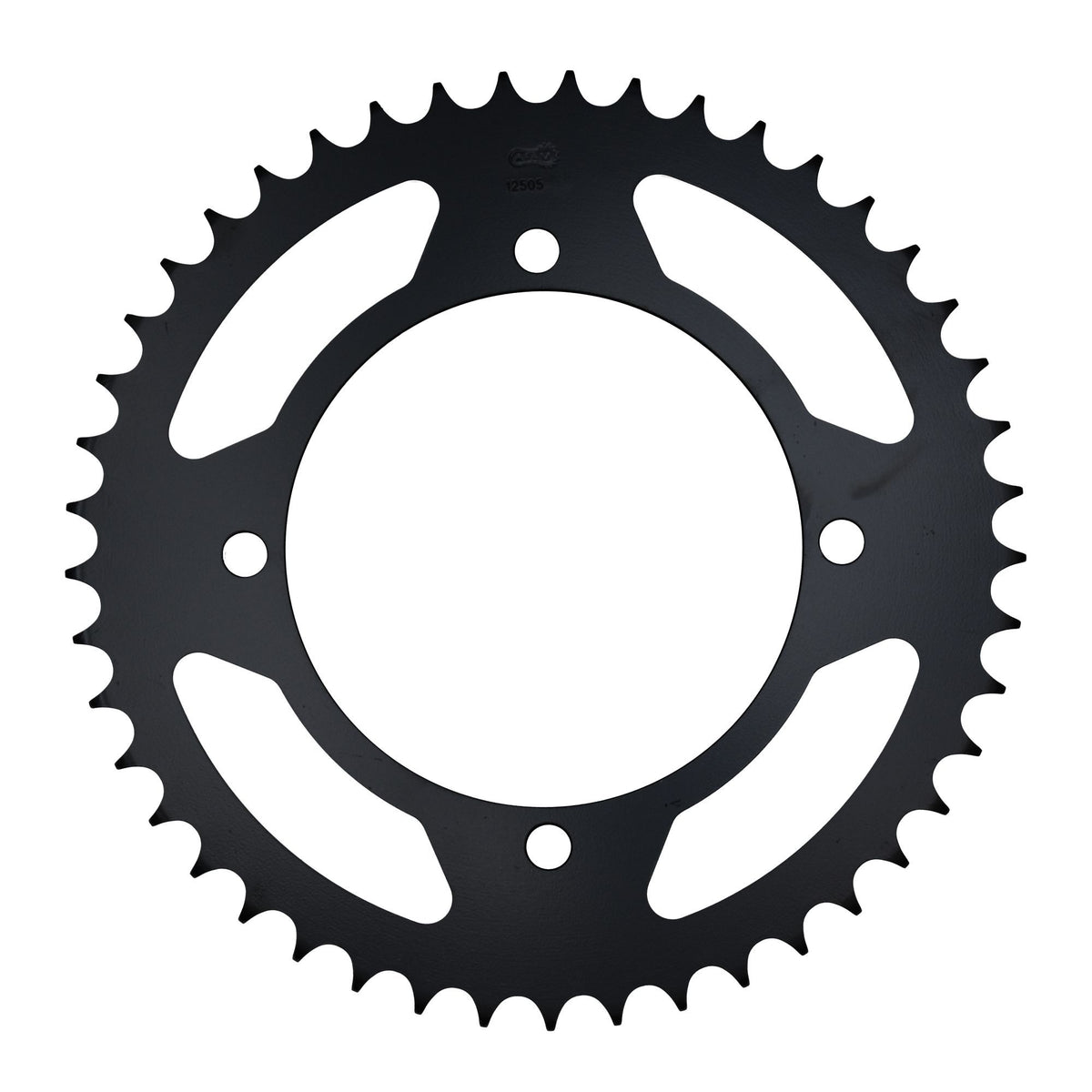

• Rear sprocket: AFAM sprocket STEEL #520 45 teeth - a12505.45
• Gear ratio front sprocket-chain-rear sprocket: 15-110-45

DID 520 VX3

Successor to the proven 520 VX2
X-Ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical specifications:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Article number	KKF-48551

Fits

Yamaha 501 - 750 cc XTZ 660 Tenere 3YF 1991
Yamaha 501 - 750 cc XTZ 660 Tenere 3YF 1992
Yamaha 501 - 750 cc XTZ 660 Tenere 3YF 1993
Yamaha 501 - 750 cc XTZ 660 Tenere 3YF 1994
Yamaha 501 - 750 cc XTZ 660 Tenere 3YF 1995
