DID chain kit for Yamaha YBR 125 (fuel injection) 07-09 428 D chain kit

DID chain kit for Yamaha YBR 125 (fuel injection) 07-09 428 D chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with the appropriate master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit for Yamaha YBR 125 (fuel injection) RE051 2007-2009

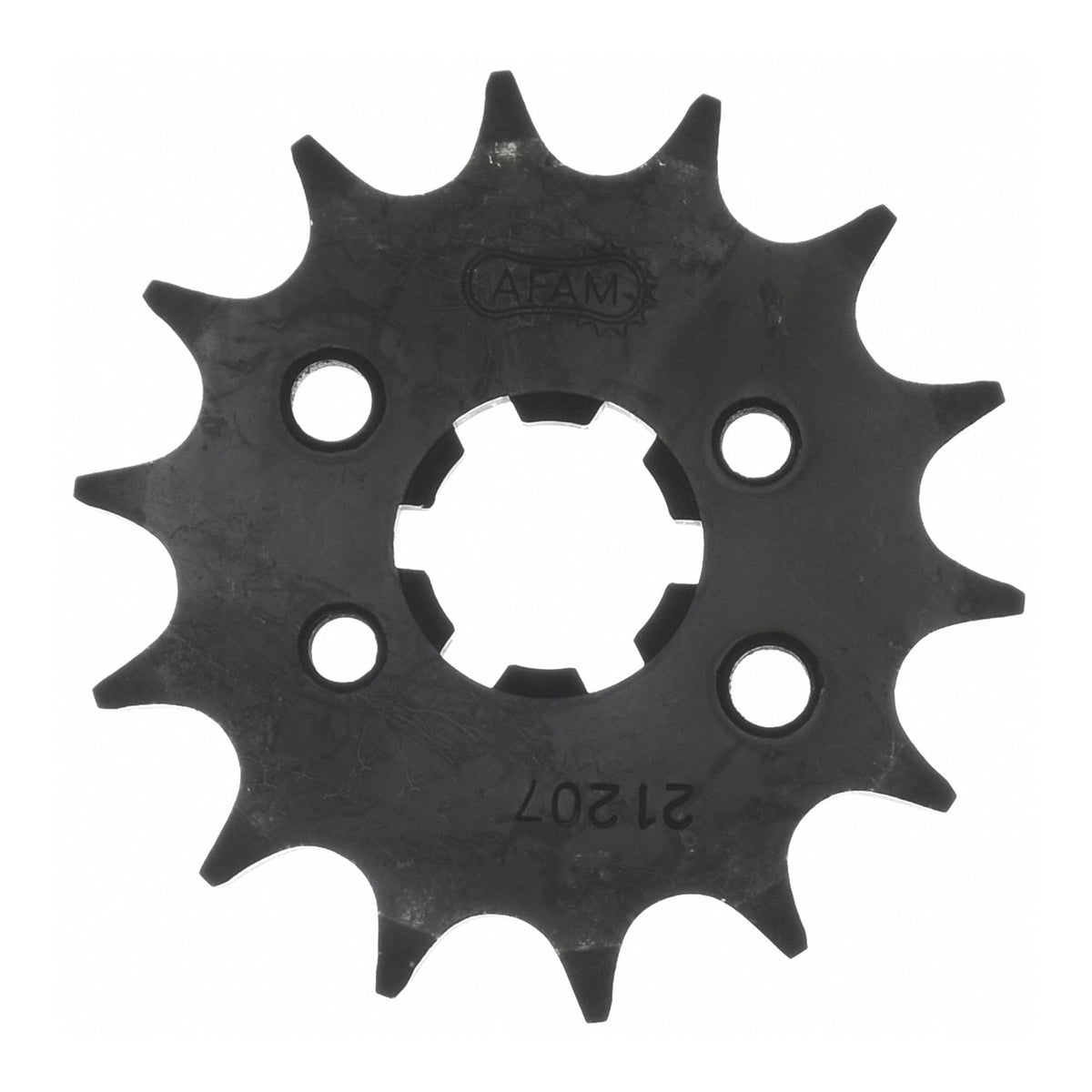

• Sprocket: AFAM sprocket #428 14 teeth - a21207.14
• Chain: DID chain 428 D 118 with clip master link - d6242800118

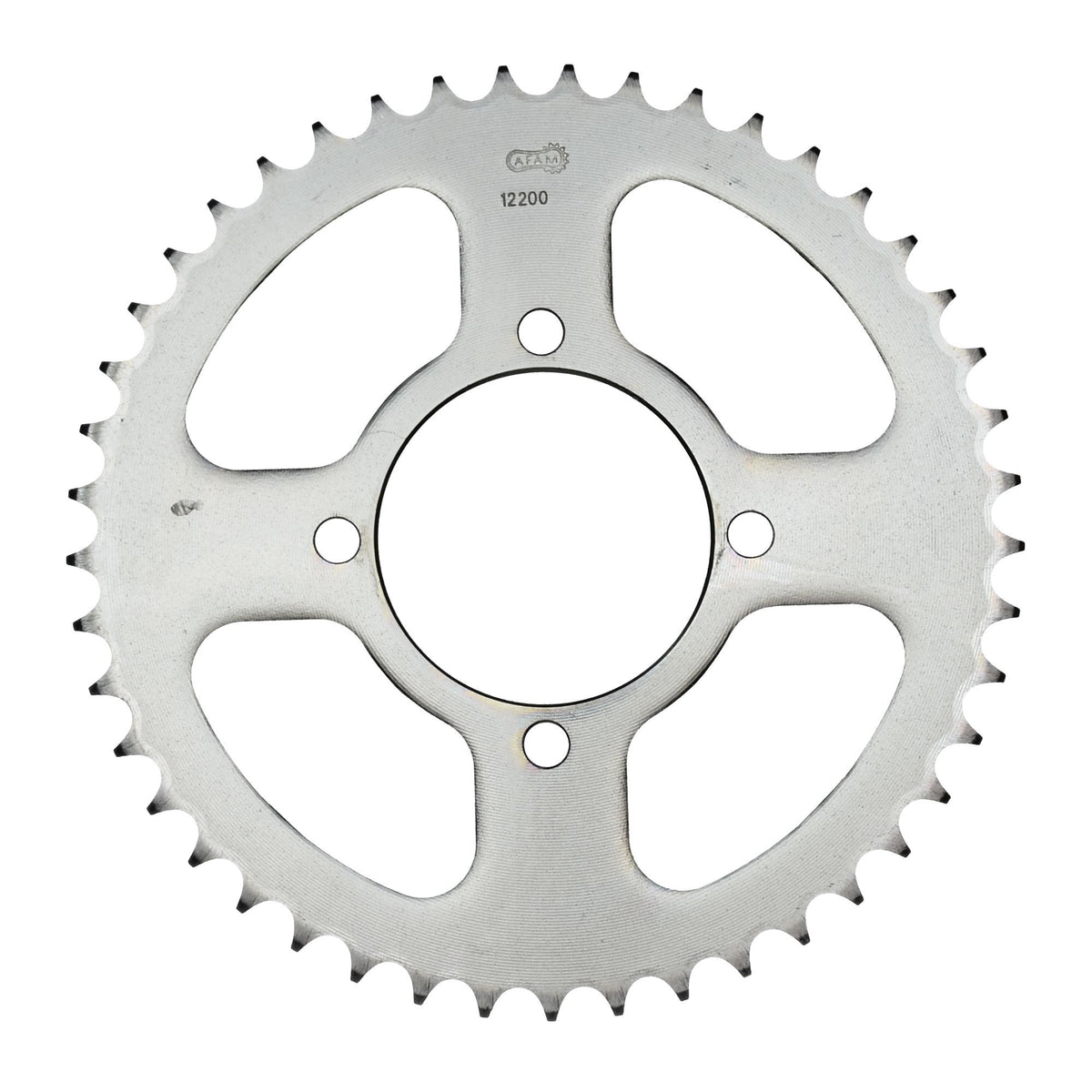

• Rear sprocket: AFAM rear sprocket STEEL #428 45 teeth - a12200.45
• Gear ratio sprocket-chain-rear sprocket: 14-118-45

DID 428 D

Affordable and simple standard chain
Without O-rings
Color: Black

Technical data:
Pitch: 428
Pin length: 16.7 mm
Roller Ø: 8.50 mm
Inner plate thickness: 1.5 mm
Outer plate thickness: 1.5 mm
Wear resistance index: 100
Tensile strength: 18.80 kN
Weight per 100 links: 0.84 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-33667

Suitable for

Yamaha 101 - 125 cc YBR 125 (fuel injection) RE051 2007
Yamaha 101 - 125 cc YBR 125 (fuel injection) RE051 2008
Yamaha 101 - 125 cc YBR 125 (fuel injection) RE051 2009
