DID chain set for Yamaha YBR 125 (fuel injection) 07-09 428 HD chain kit

DID chain kit for Yamaha YBR 125 (fuel-injected) 07-09 428 HD chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit for Yamaha YBR 125 (fuel-injected) RE051 2007-2009

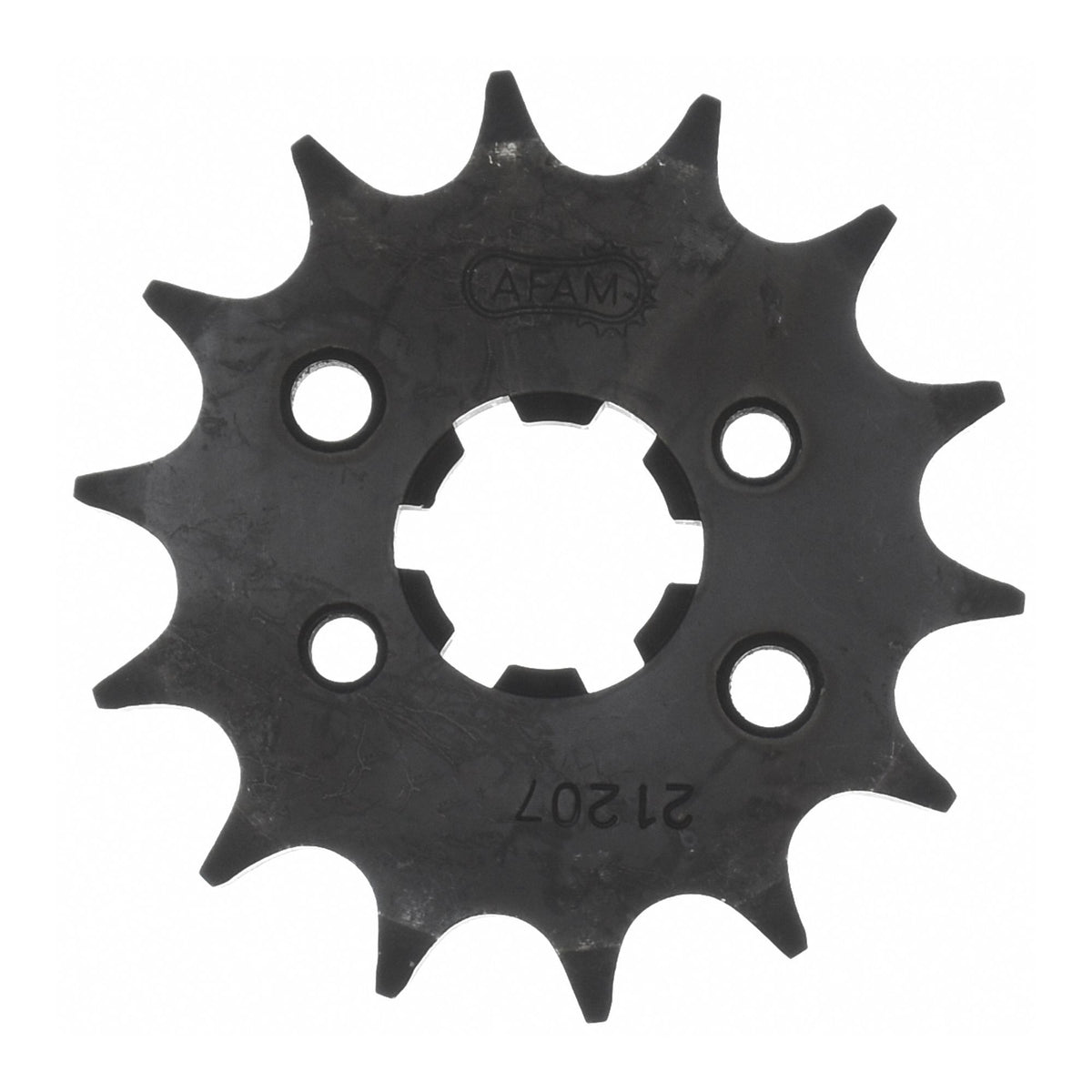

• Sprocket: AFAM sprocket #428 14 teeth - a21207.14
• Chain: DID chain 428 HD 118 with clip link - d6242801118

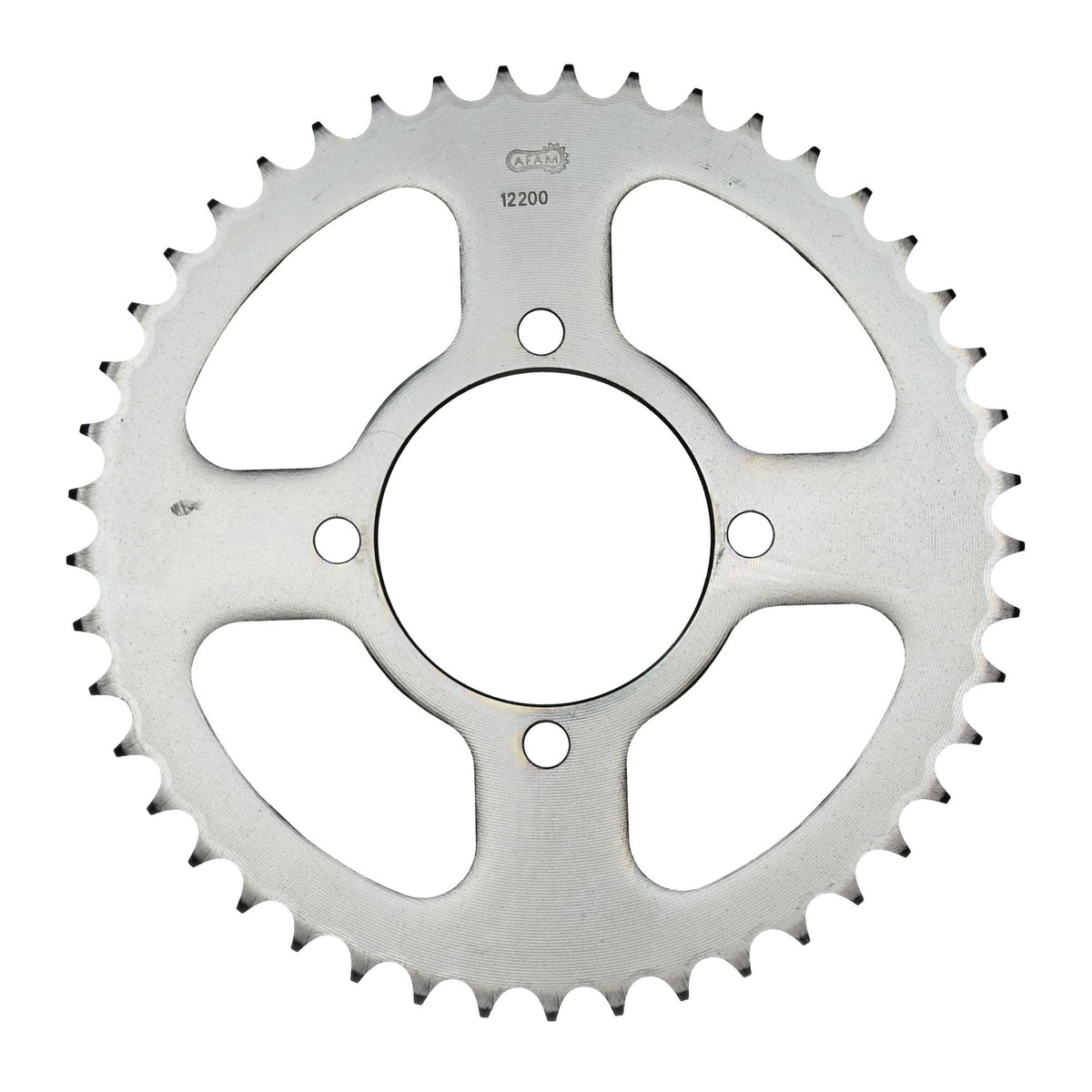

• Rear sprocket: AFAM rear sprocket STEEL #428 45 teeth - a12200.45
• Gear ratio sprocket-chain-rear sprocket: 14-118-45

DID 428 HD

Slightly reinforced chain and successor to the proven 428 H
Without O-rings
Color: Black

Technical specifications:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Mileage index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Article number	KKF-17972

Suitable for

Yamaha 101 - 125 cc YBR 125 (fuel-injected) RE051 2007
Yamaha 101 - 125 cc YBR 125 (fuel-injected) RE051 2008
Yamaha 101 - 125 cc YBR 125 (fuel-injected) RE051 2009
