DID chain kit for Yamaha YFM 660 Raptor R 01-05 520 ZVMX chain kit

DID chain kit for Yamaha YFM 660 Raptor R 01-05 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Yamaha YFM 660 Raptor R AM01W 2001-2005

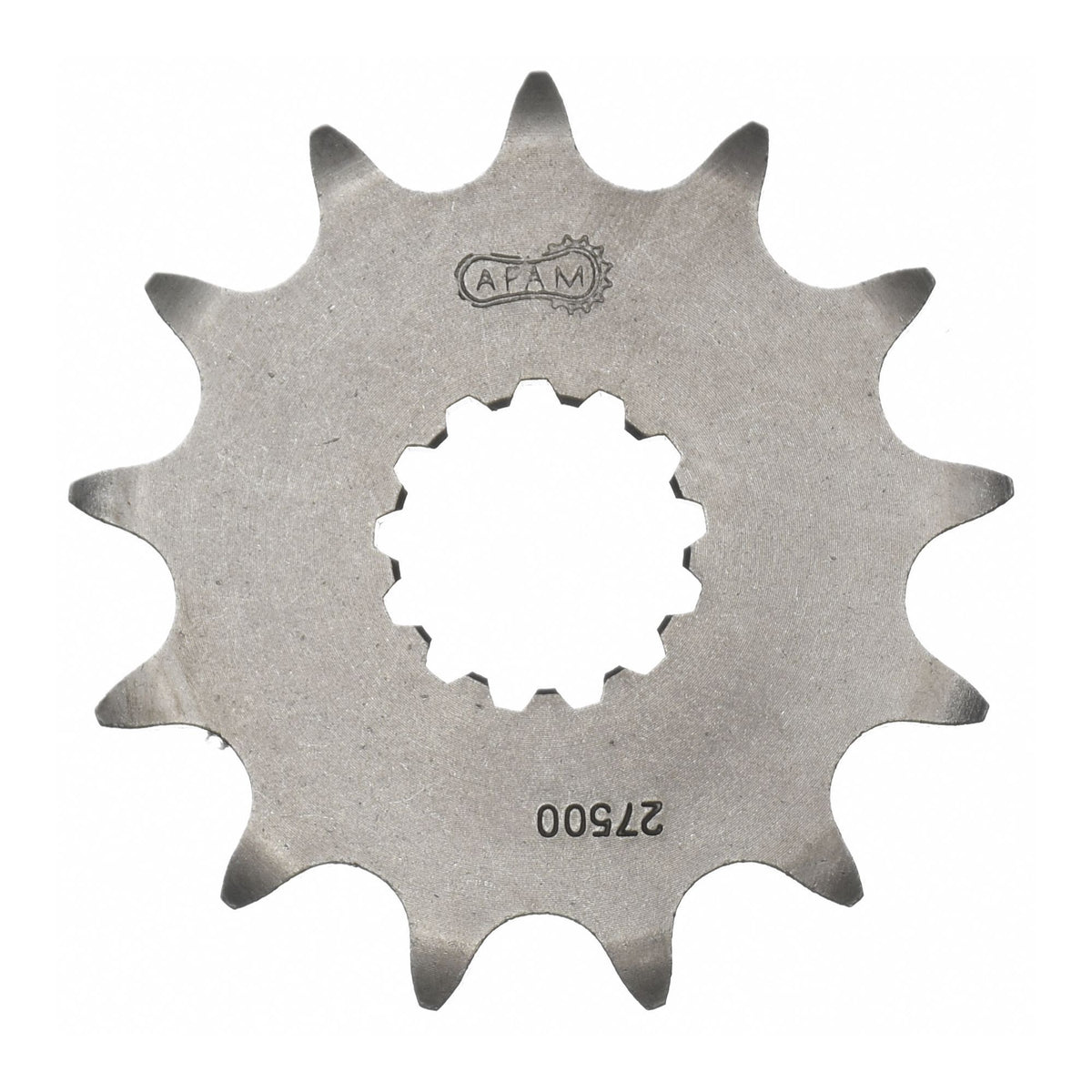

• Sprocket: AFAM sprocket #520 13 teeth - a27500.13
• Chain: DID chain 520 ZVM-X G&G 92 with rivet link - d6252029092

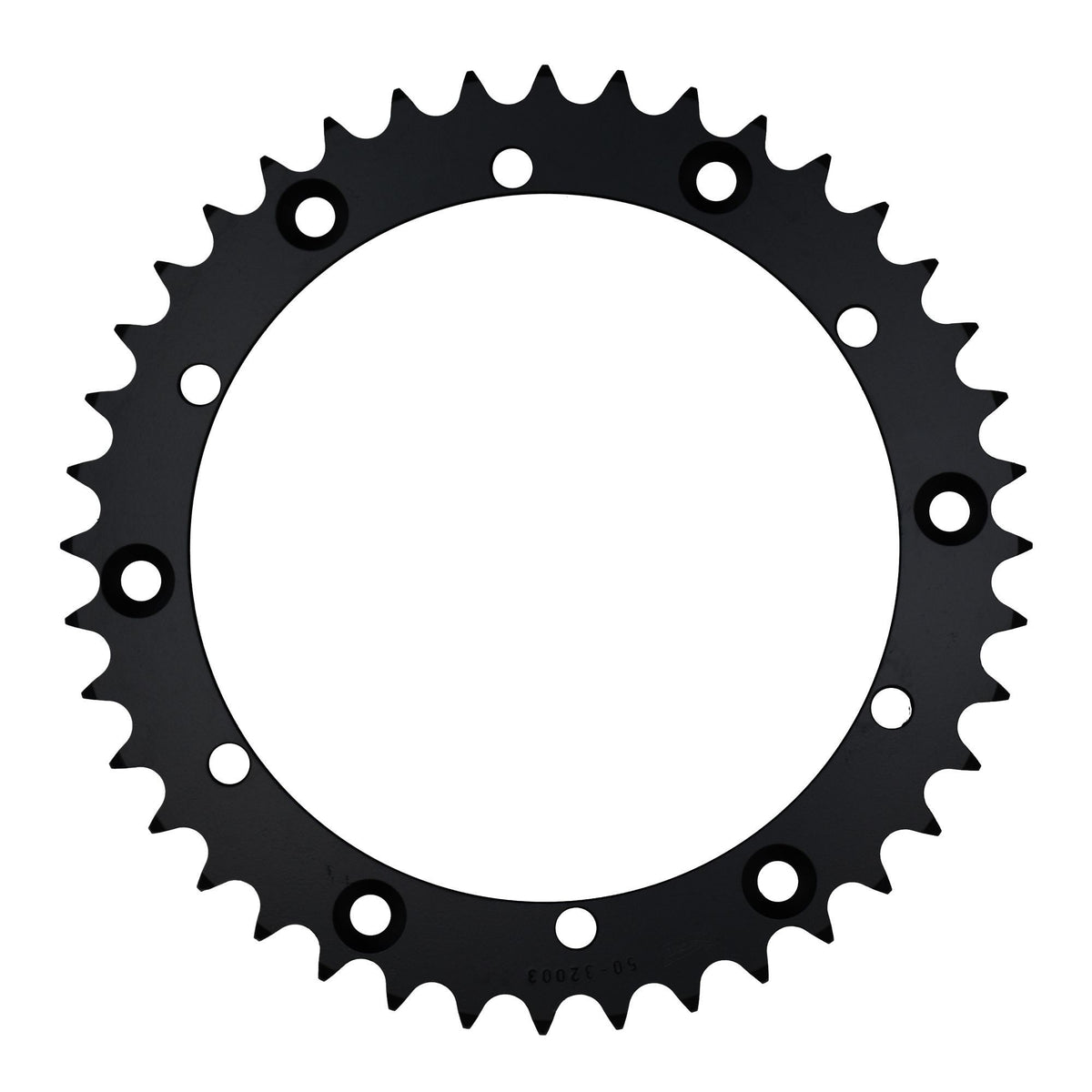

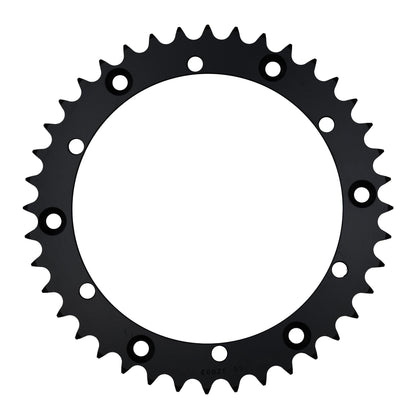

• Rear sprocket: AFAM rear sprocket STEEL #520 40 teeth - a12502.40
• Gear ratio sprocket-chain-rear sprocket: 13-92-40

DID 520 ZVM-X

Extra reinforced chain, versatile range of applications
X-Ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-36532

Suitable for

Yamaha 501 - 750 cc YFM 660 Raptor R AM01W 2001
Yamaha 501 - 750 cc YFM 660 Raptor R AM01W 2002
Yamaha 501 - 750 cc YFM 660 Raptor R AM01W 2003
Yamaha 501 - 750 cc YFM 660 Raptor R AM01W 2004
Yamaha 501 - 750 cc YFM 660 Raptor R AM01W 2005
