DID chain kit for Yamaha YFM 700 R 2009 520 ZVMX chain kit

DID chain kit for Yamaha YFM 700 R 2009 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Yamaha YFM 700 R 2009-2009

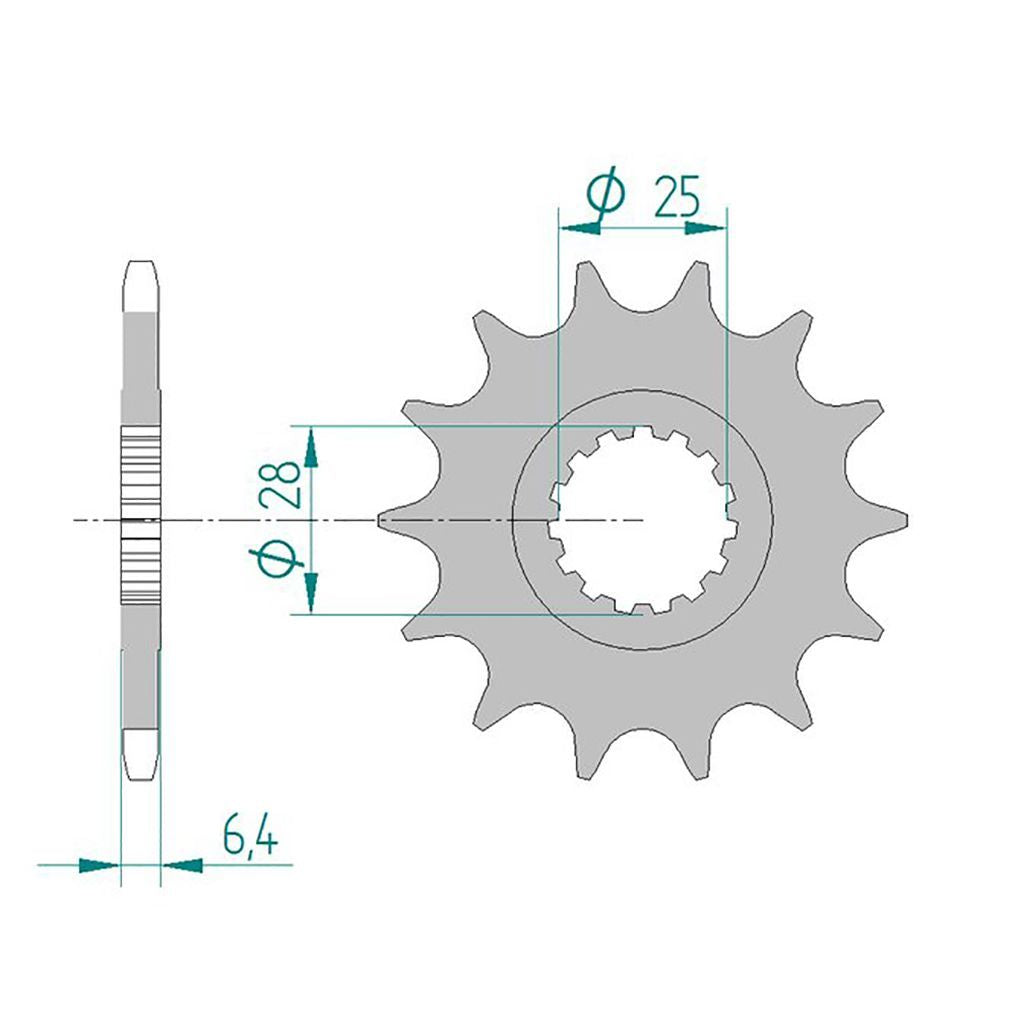

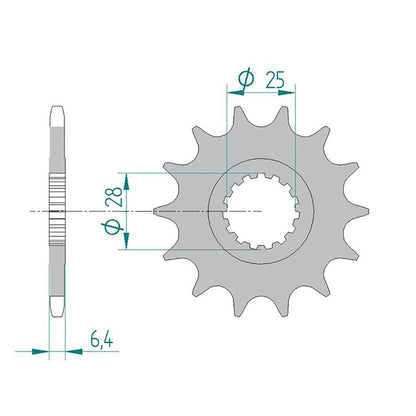

• Sprocket: AFAM sprocket #520 14 teeth - a21608.14
• Chain: DID chain 520 ZVM-X G&G 98 with rivet link - d6252029098

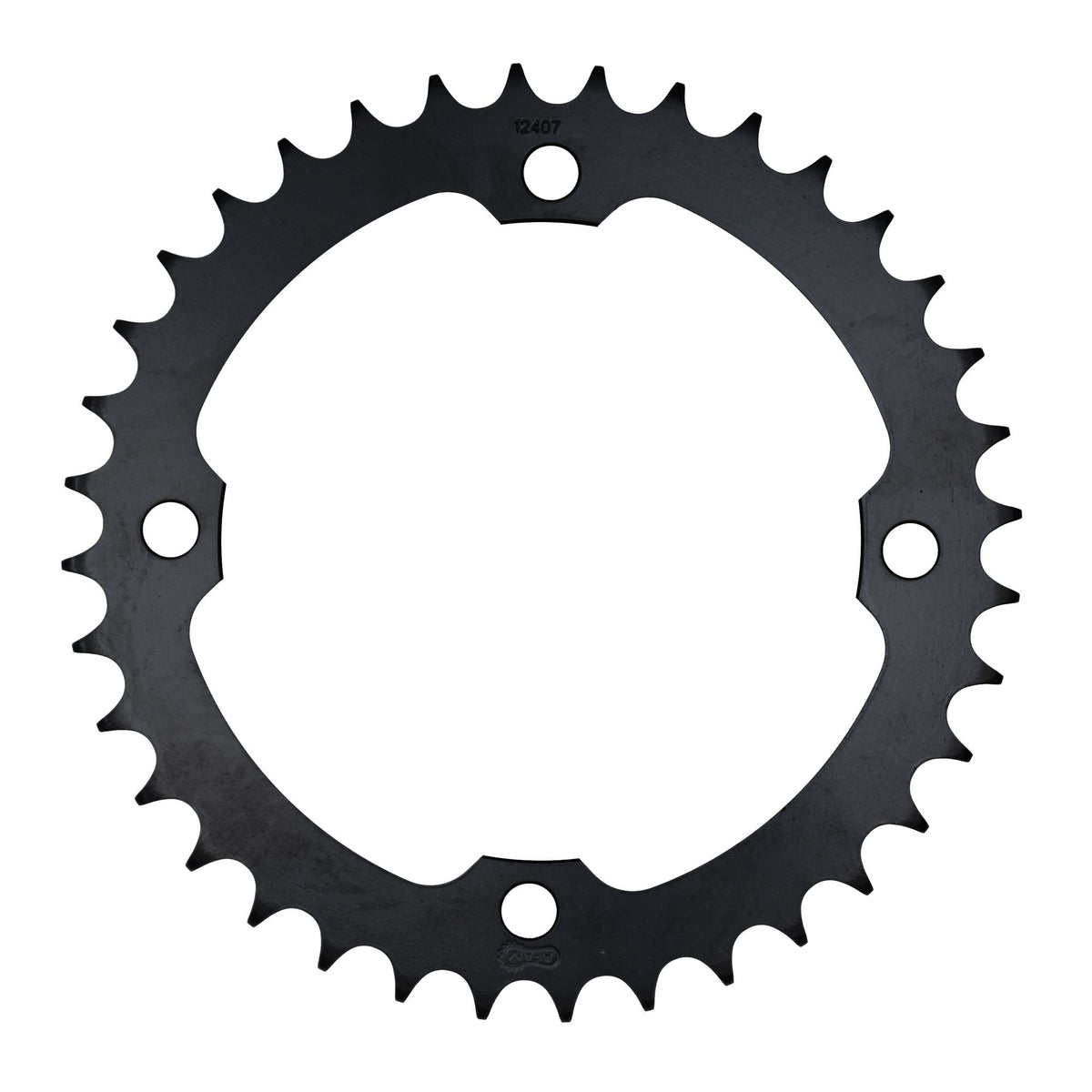

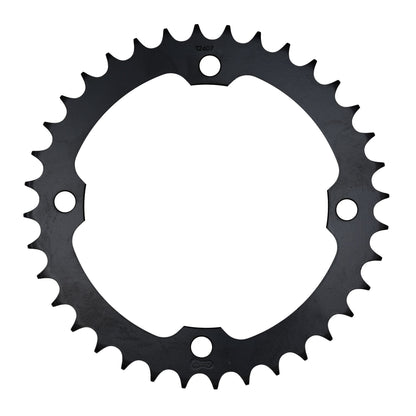

• Chain wheel: AFAM chain wheel STEEL #520 38 teeth - a12407.38
• Gear ratio sprocket-chain-chain wheel: 14-98-38

DID 520 ZVM-X

Extra reinforced chain, versatile area of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-35220

Suitable for

Yamaha 501 - 750 cc YFM 700 R 2009
