DID chain kit for Yamaha YFM 700 Raptor R 06-12 520 ZVMX chain kit

DID chain kit for Yamaha YFM 700 Raptor R 06-12 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha YFM 700 Raptor R AM07W 2006-2012

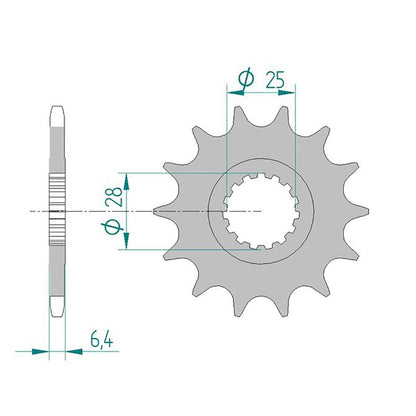

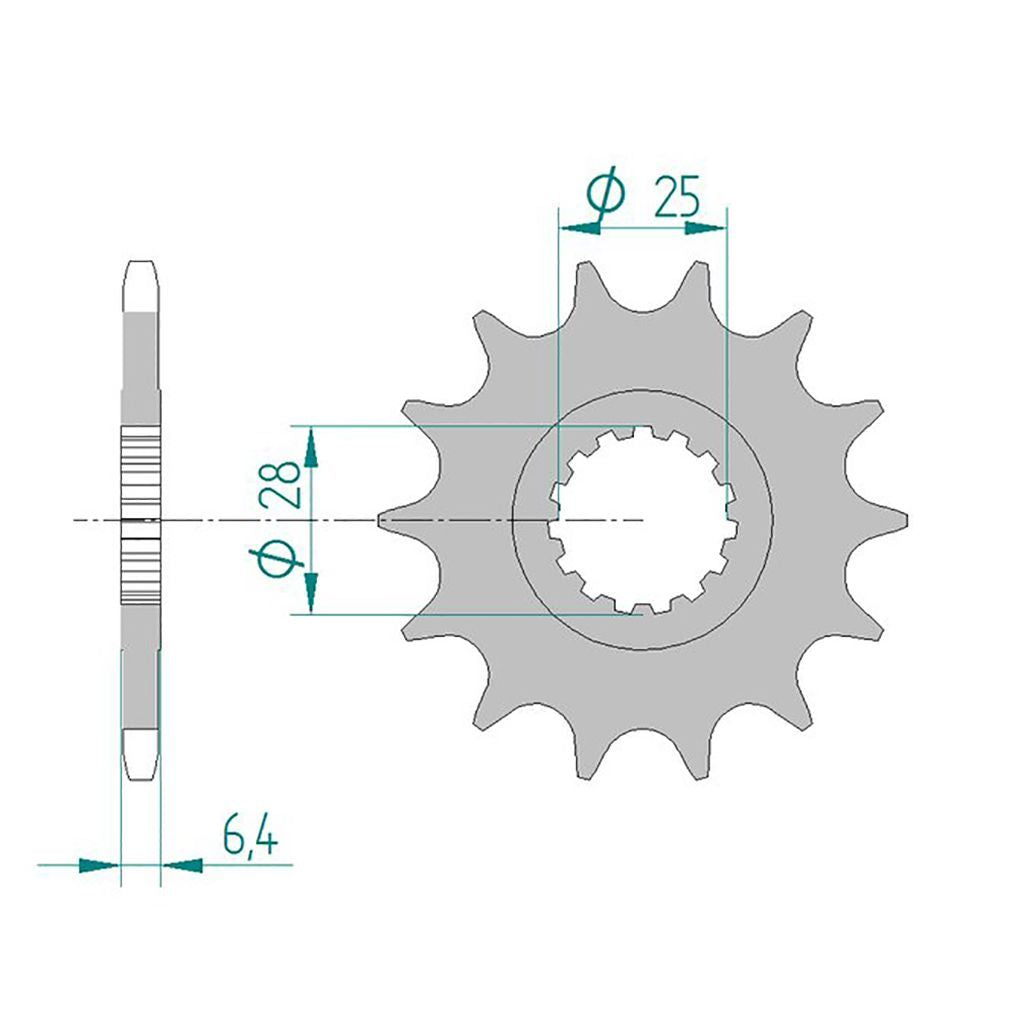

• Front sprocket: AFAM front sprocket #520 14 teeth - a21608.14
• Chain: DID chain 520 ZVM-X G&G 98 with rivet link - d6252029098

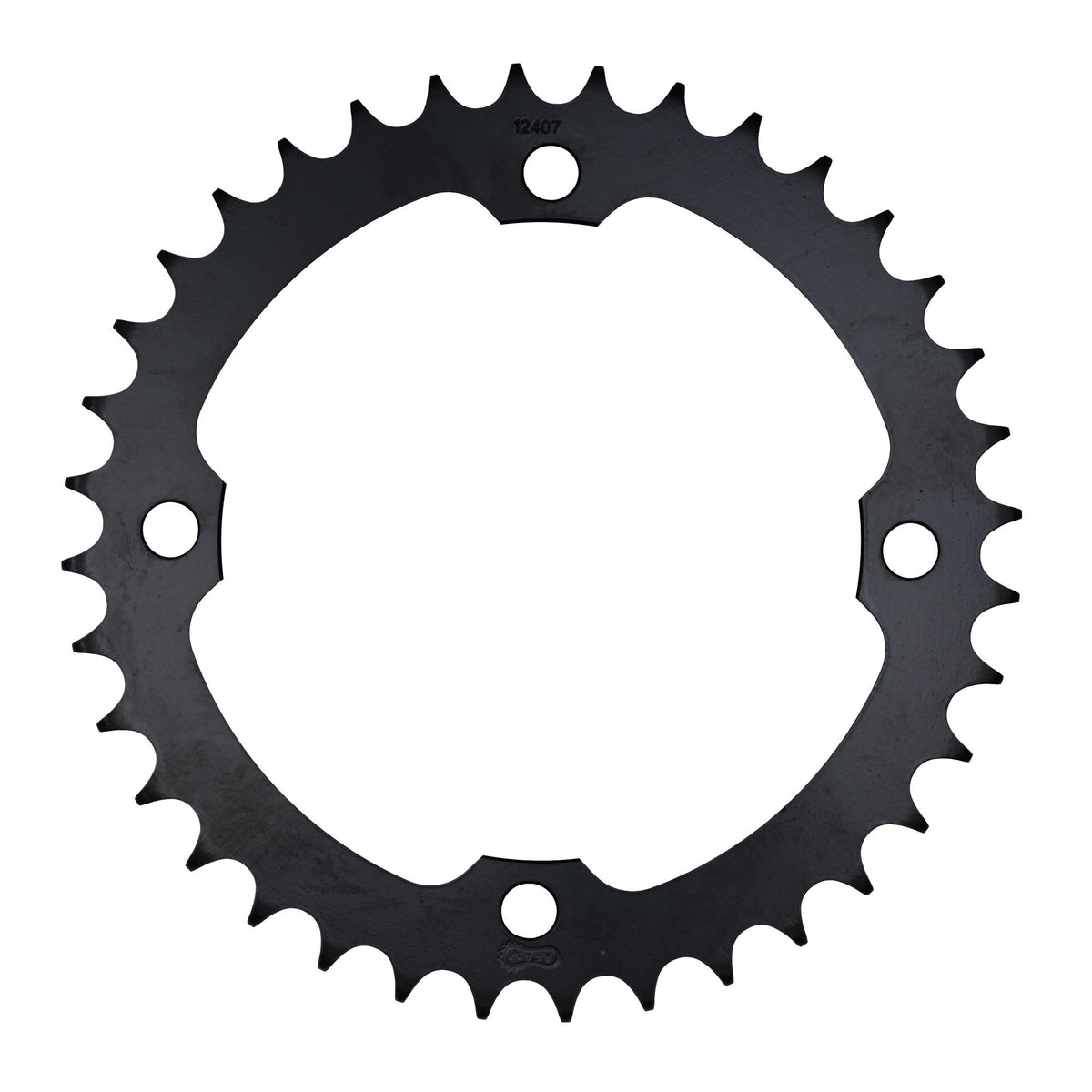

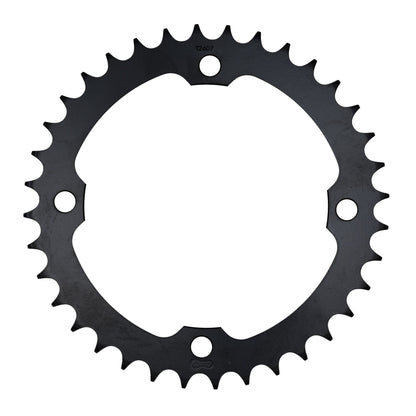

• Rear sprocket: AFAM rear sprocket STEEL #520 38 teeth - a12407.38
• Gear ratio sprocket-chain-rear sprocket: 14-98-38

DID 520 ZVM-X

Extra reinforced chain, versatile application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-36533

Suitable for

Yamaha 501 - 750 cc YFM 700 Raptor R AM07W 2006
Yamaha 501 - 750 cc YFM 700 Raptor R AM07W 2007
Yamaha 501 - 750 cc YFM 700 Raptor R AM07W 2008
Yamaha 501 - 750 cc YFM 700 Raptor R AM07W 2009
Yamaha 501 - 750 cc YFM 700 Raptor R AM07W 2010
Yamaha 501 - 750 cc YFM 700 Raptor R AM07W 2011
Yamaha 501 - 750 cc YFM 700 Raptor R AM07W 2012
