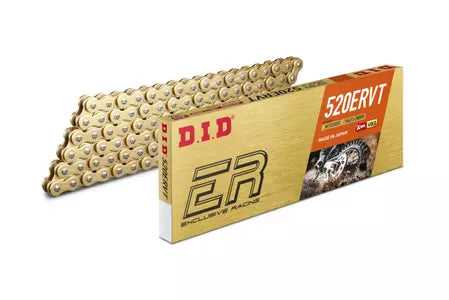

Chain drive chain DID 520 ERVT 120 X-Ring G&G open with clip connecting link gold

Chain Drive chain DID 520 ERVT 120 X-Ring G&G open with clip connecting link gold

Motorcycle drive chain for chain drives. Suitability is based on chain pitch, required number of links, chain series, and the vehicle's performance requirements.

Technical data

• Chain pitch: 520
• Number of links: 120
• Chain series: 520ERVT
• Connecting link / version: Clip connecting link
• Chain version: Open
• Seal: X-Ring
• Color: Gold, Gold/Gold
• Manufacturer recommendation up to: 500 cc
• Tensile strength according to D.I.D: 8,440 lbs
• Chain Life Index according to D.I.D: 3,500
• Typical use: Off-road, rally and lightweight high-performance applications; slim profile

Suitable for

Suitable for motorcycles whose original or custom specification requires a 520 chain pitch, 120 links, and an application within the D.I.D. performance class up to 500 cc. Exact vehicle approval additionally depends on model, year of manufacture, gear ratio, and prescribed chain strength.

Vehicle note: D.I.D explicitly names the Honda L-series as a suitable application.

Check official D.I.D. product and application notes

Installation instructions

• Before ordering, compare chain pitch, number of links, and chain series with the vehicle specifications.
• When replacing a chain, the sprocket and rear sprocket should be checked for wear and replaced together if necessary.
• Only use clip, press-fit, and rivet connecting links in the version intended for the respective chain series.
• Carry out installation, riveting, chain tensioning, and lubrication in accordance with the vehicle and chain manufacturer's instructions.
