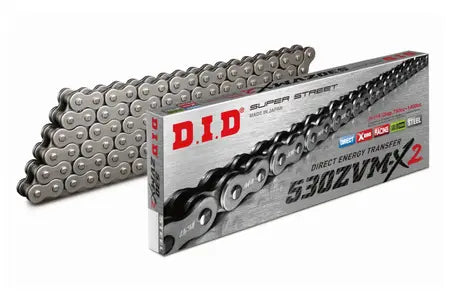

Chain drive chain DID 530 ZVMX2 124 X-ring open with rivet link

Chain Drive chain DID 530 ZVMX2 124 X-Ring open with rivet link

Connecting link for a matching D.I.D drive chain. The link must exactly match the chain series and chain pitch.

Technical data

• Chain pitch: 530
• Chain series: 530ZVMX2
• Link / version: Rivet link
• Chain design: Open
• Seal: X-Ring
• Manufacturer recommendation up to: 1,400 cc
• Tensile strength according to D.I.D: 10,400 lbs
• Chain Life Index according to D.I.D: 4,000
• Typical use: high-performance road and adventure motorcycles

Suitable for

Suitable exclusively for D.I.D chains of the 530ZVMX2 series with 530 pitch. Connecting links of different chain models are not interchangeable.

Important: ZVM-X and ZVM-X2 connecting links are not interchangeable.

Check official D.I.D. product and application instructions

Assembly instructions

• Before ordering, compare chain pitch, number of links, and chain series with the vehicle specifications.
• When replacing a chain, the front and rear sprockets should be checked for wear and replaced together if necessary.
• Only use clip, press-fit, and rivet links in the version intended for the respective chain series.
• Carry out assembly, riveting, chain tensioning, and lubrication in accordance with the vehicle and chain manufacturer's instructions.
