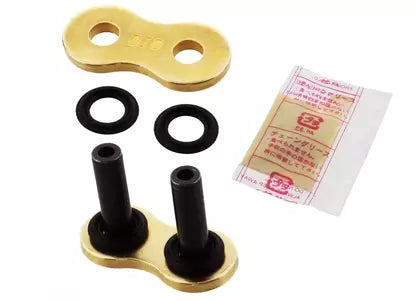

DID 525 ZVMX G&G hollow rivet link gold

DID 525 ZVMX G&G Hollow Rivet Connecting Link gold

Connecting link for a matching D.I.D drive chain. The link must match the chain series and chain pitch exactly.

Technical data

• Chain pitch: 525
• Chain series: 525ZVMX
• Fastener / Type: Hollow rivet link
• Seal: X-Ring
• Color: Gold, Gold/Gold
• Manufacturer recommendation up to: 1,300 cc
• Tensile strength according to D.I.D: 10,100 lbs
• Chain Life Index according to D.I.D: 4,000
• Typical application: high-performance street and adventure motorcycles

Compatible with

Compatible exclusively with D.I.D chains of the 525ZVMX series with a 525 pitch. Connecting links for different chain models are not interchangeable.

Important: ZVM-X and ZVM-X2 connecting links are not interchangeable.

Check official D.I.D product and application notes

Installation instructions

• Before ordering, compare the chain pitch, number of links, and chain series with the vehicle specifications.
• When replacing a chain, the front and rear sprockets should be checked for wear and replaced together if necessary.
• Use clip, press-fit, and rivet links only in the version intended for the respective chain series.
• Perform installation, riveting, chain tensioning, and lubrication according to vehicle and chain manufacturer specifications.
