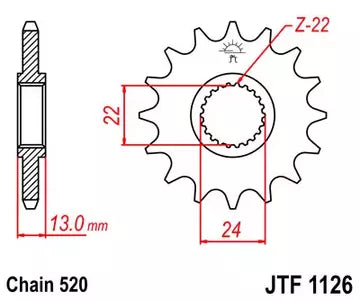

JT front sprocket JTF1126.16, 16 teeth, 520 pitch

JT front sprocket JTF1126.16, 16 teeth, 520 pitch

JT front drive sprocket. The vehicle compatibility list below has been taken from the official JT Sprockets Application Guide 2024.

Technical data

• JT part number / Fitment: JTF1126
• Mounting position: Front / gearbox output
• Chain pitch: 520
• Teeth selectable in shop: 16

Compatible with – official JT vehicle list

Important note regarding tooth selection: The JT fitment number describes the compatible mounting. The Application Guide also specifies the number of teeth with which the respective vehicle is listed. A different number of teeth offered within the same fitment family will change the gear ratio and may differ from the standard gearing.

16 teeth according to JT Application Guide

• Aprilia 650 Pegaso – Year 92-97 – Chain 520, 110 links
• Aprilia Moto 6.5 (650 cc) – Year 95-99 – Chain 520, 108 links
• Aprilia 650 Stark France – Year 95-98 – Chain 520, 120 links

Assembly and gearing note

• Before ordering, verify model, year, chain pitch, and desired number of teeth.
• A different number of teeth changes the gear ratio and may require a different chain length or an adjustment of the chain tension.
• Perform assembly and tighten to the torque specifications provided by the vehicle manufacturer.
