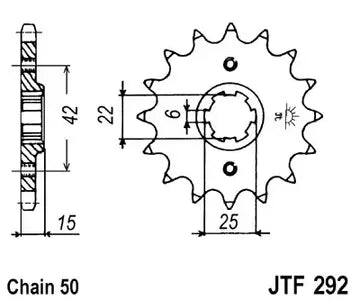

JT front sprocket JTF292.16, 16 teeth, 530 pitch

Front sprocket JT JTF292.16, 16 teeth, 530 pitch

JT front drive sprocket. The vehicle compatibility list below has been taken from the official JT Sprockets Application Guide 2024.

Technical data

• JT part number / fitment: JTF292
• Installation position: Front / transmission output
• Chain pitch: 530
• Teeth selectable in shop: 16

Suitable for – official JT vehicle compatibility

Important note on tooth selection: The JT fitment number describes the compatible mounting. The application guide also specifies the number of teeth with which the respective vehicle is listed. A different number of teeth offered within the same fitment family alters the gear ratio and may deviate from the factory specification.

16 teeth according to JT Application Guide

• Honda NS400 R NC19 (400 cc) – Model year 85-88 – Chain 530, 108 links
• Honda VFR400 R NC21 (400 cc) – Model year 86 – Chain 530, 108 links

Installation and gear ratio note

• Check model, model year, chain pitch, and desired number of teeth before ordering.
• A different number of teeth changes the gear ratio and may require a different chain length or an adjustment of the chain tension.
• Perform installation and tighten to the torque specifications provided by the vehicle manufacturer.
